11 23 010 Removing and installing/replacing vibration damper (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 120
11 0 270

Unscrew and remove splash guard.

Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (S62) .

Remove alternator drive belt.

Remove A/C compressor drive belt.

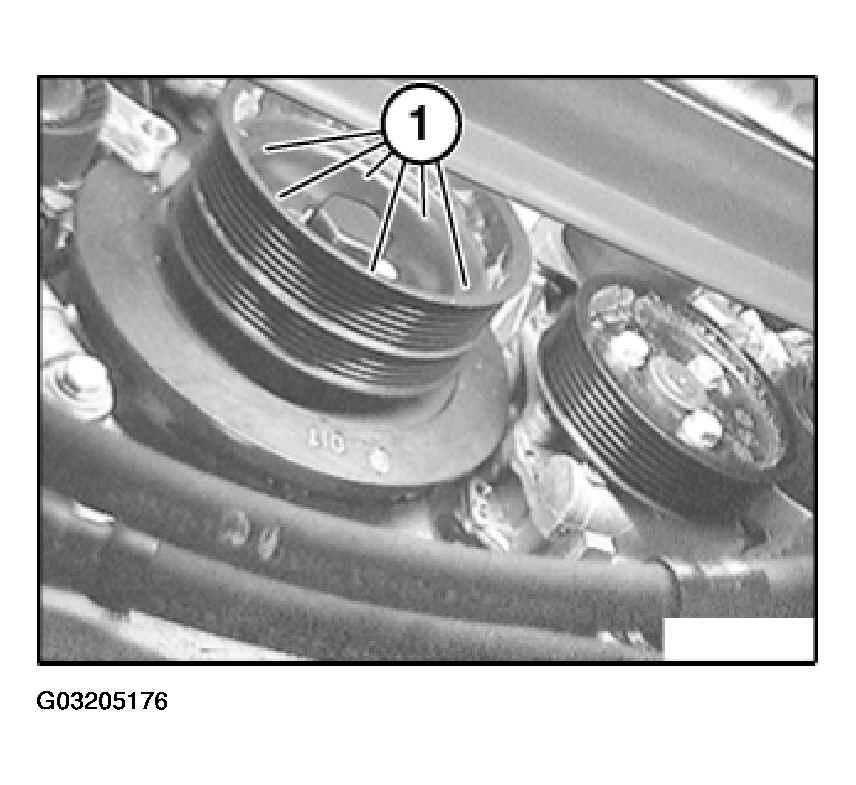

Loosen screws (1). Remove cover and belt pulley.

Fig 1: Removing Cover And Belt Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 0 270 to vibration damper.

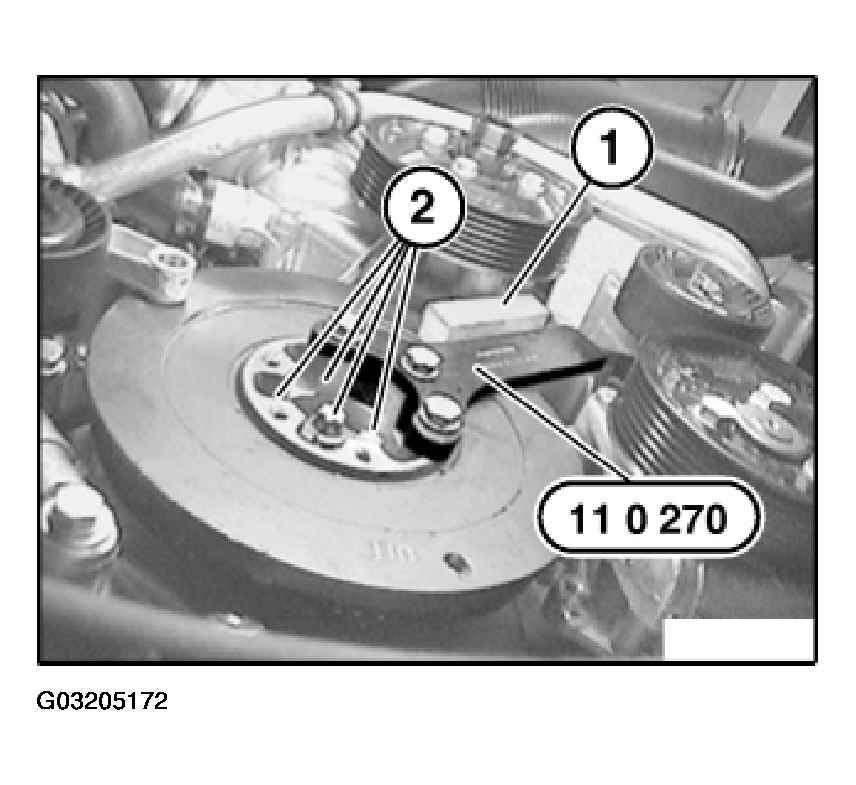

Fig 2: Removing Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Protect water pump against damage.
Place piece of wood (1) between water pump and special tool 11 0 270.

Loosen screws (2).

NOTE: Washers are fitted under screws (2).

Remove vibration damper.

Installation:

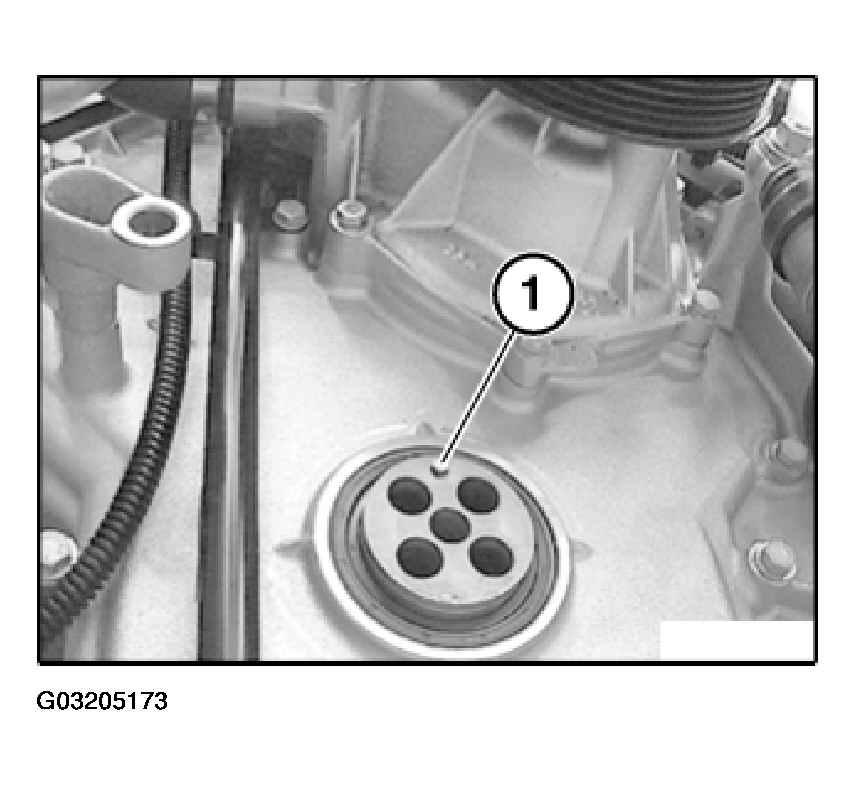

Align locating bore in vibration damper to dowel pin (1).

Fig 3: Aligning Locating Bore In Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach vibration damper and align to dowel pin.

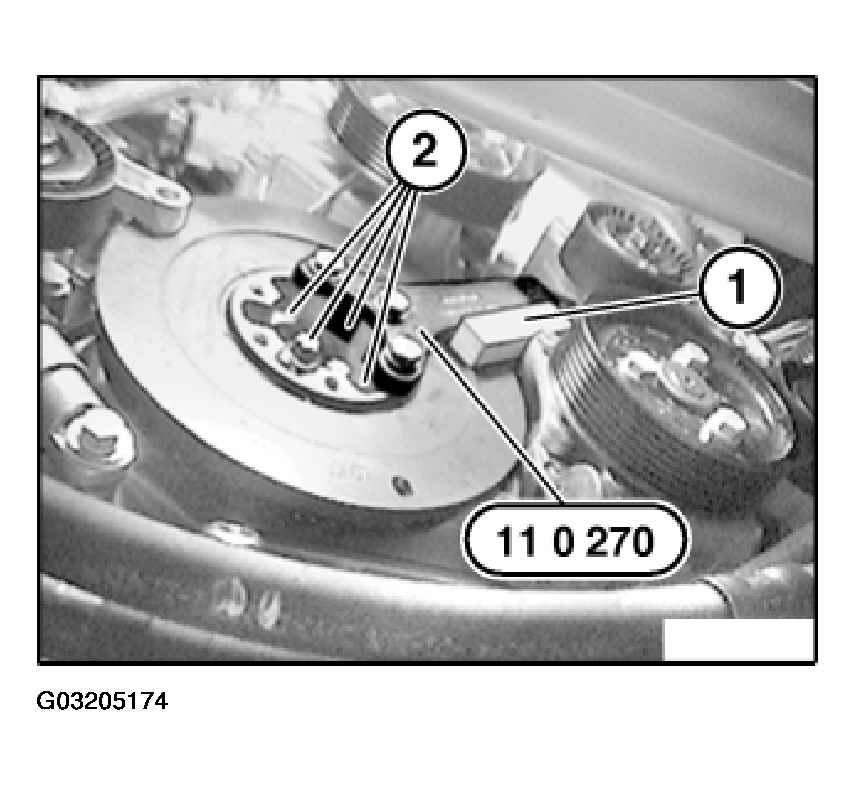

Fig 4: Installing Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Washers are fitted under screws (2).
Replace screws (2).
Attach special tool 11 0 270 to vibration damper.
Place piece of wood (1) between vane pump and special tool 11 0 270.

Installation:

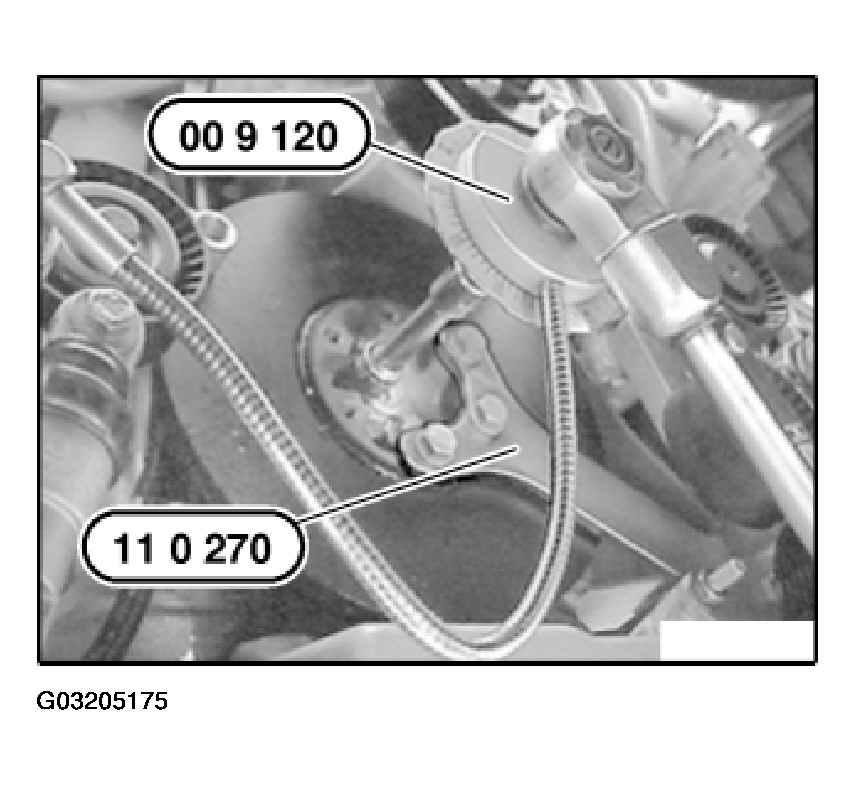

Tighten down screws on vibration damper with special tool 00 9 120.

Fig 5: Tightening Down Screws On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 23 2AZ. Refer to 11 23 VIBRATION DAMPER .

Installation:

Install screws (1) with cover and belt pulley.

Fig 6: Installing Cover And Belt Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque, 11 23 3AZ. Refer to 11 23 VIBRATION DAMPER .
