11 28 010 Replacing alternator drive belt (S62)
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.
Remove fan clutch with fan impeller. Refer to 11 52 020 Removing and installing or replacing fan clutch (S62) and 17 11 031 REPLACING FAN COWL (S62) .
Remove engine splash guard.

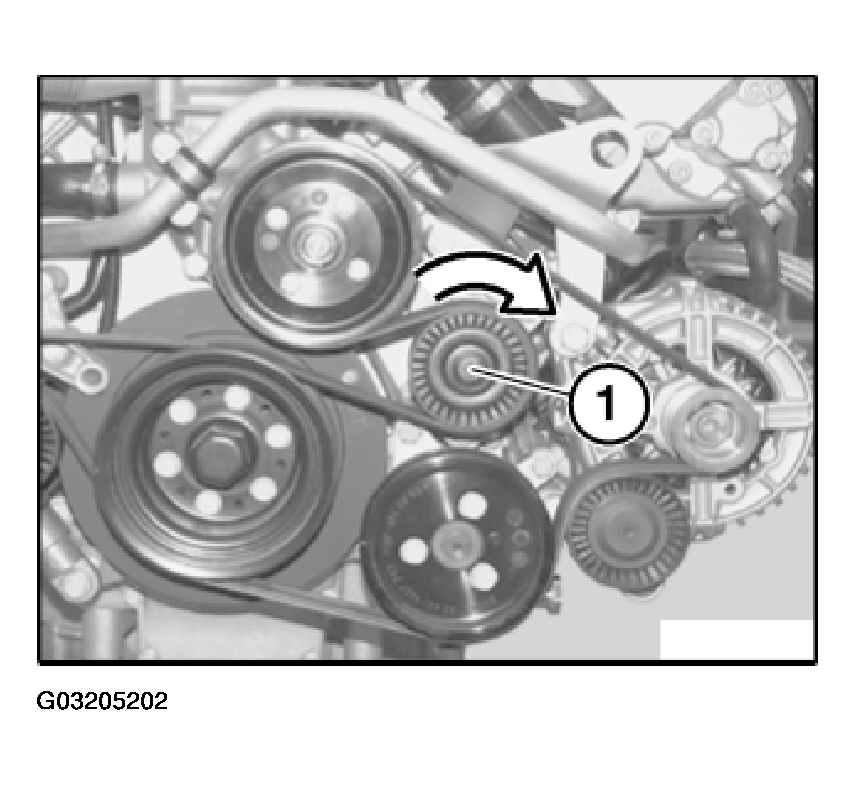

Tighten screw connection (1) of tensioning wheel and compress belt tensioner slowly and carefully. Hold belt tensioner under tension, remove drive belt.
CAUTION:
Drive belt must be replaced if fouled with hydraulic fluid.
Installation:
Check drive belt for coolant and oil residue and replace if necessary.
Installation:

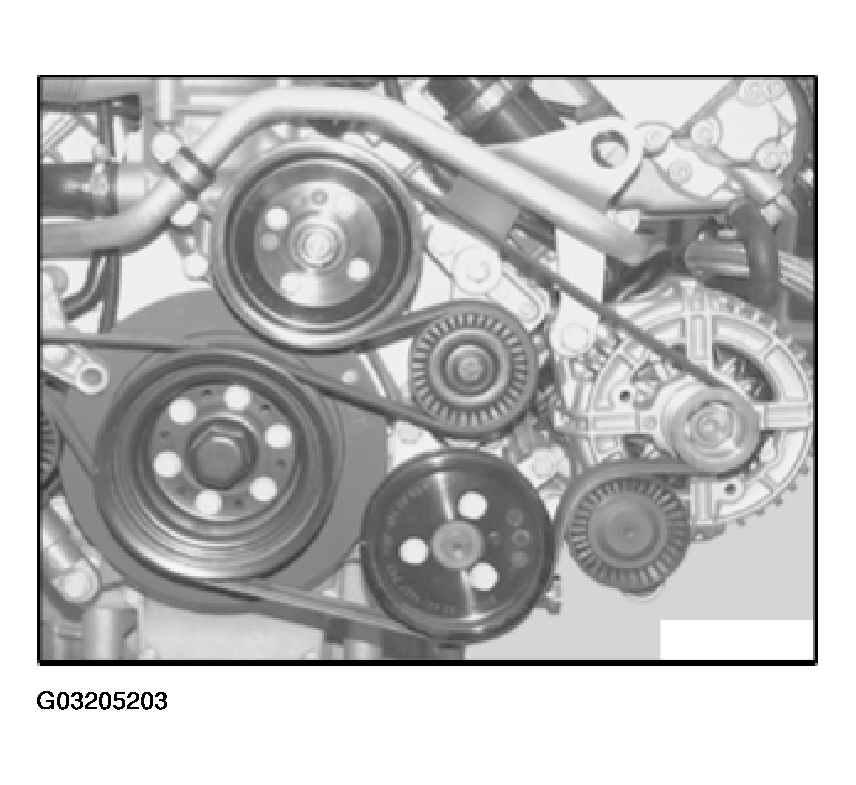

Check that belt is correctly positioned on belt pulleys.
