11 52 020 Removing and installing or replacing fan clutch (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Left-hand threads.

Using special tool 11 5 050 brace against pulley and unfasten cap nut from water pump using special tool 11 5 040.

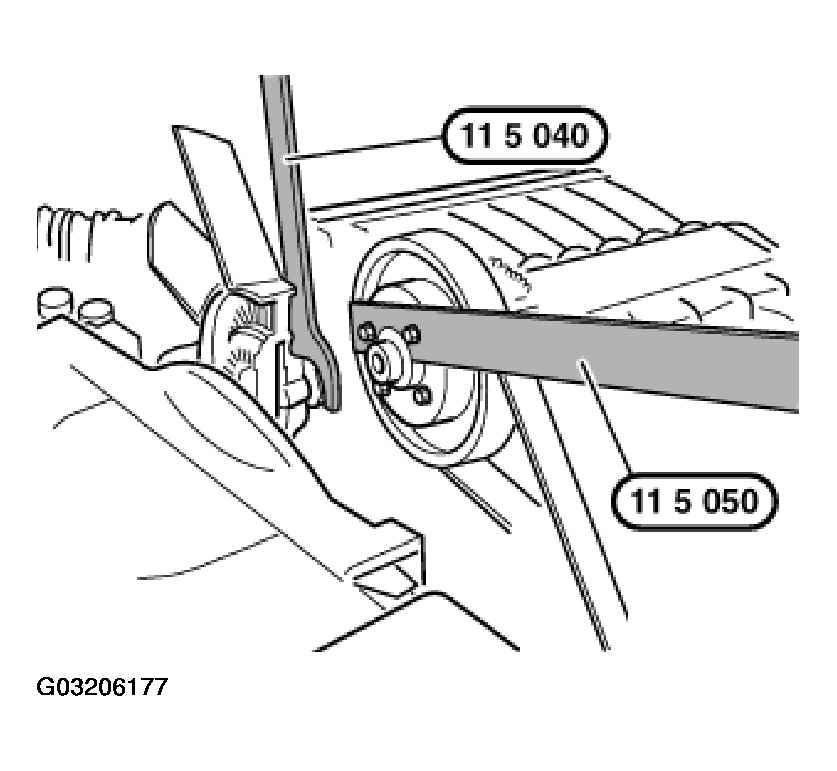

Fig 1: Removing Cap Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan wheel with fan coupling from water pump.

Installation:

Tighten down fan wheel using special tool 11 5 040.

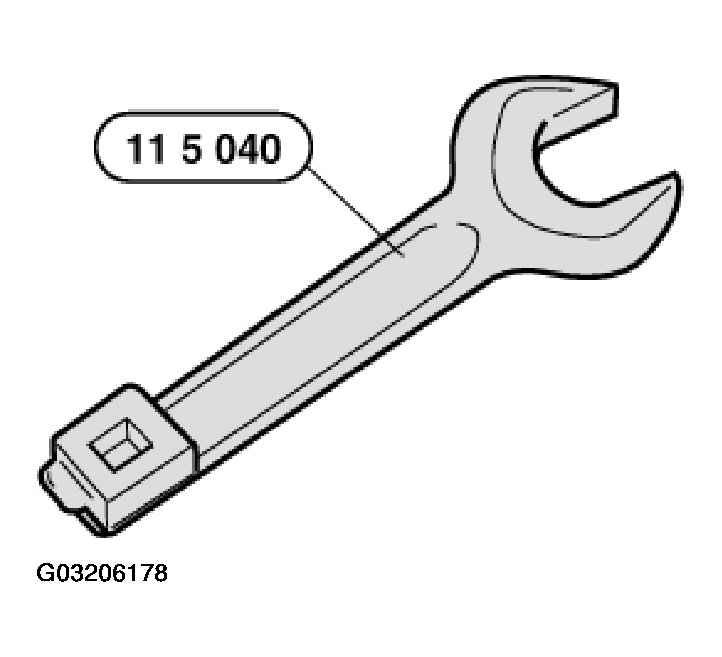

Fig 2: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening Torque, 40 Nm.

NOTE: When using special tool 11 5 040, 30 Nm on the torque wrench scale are equivalent to a tightening torque of 40 Nm.

Unfasten screws and detach fan from fan coupling.

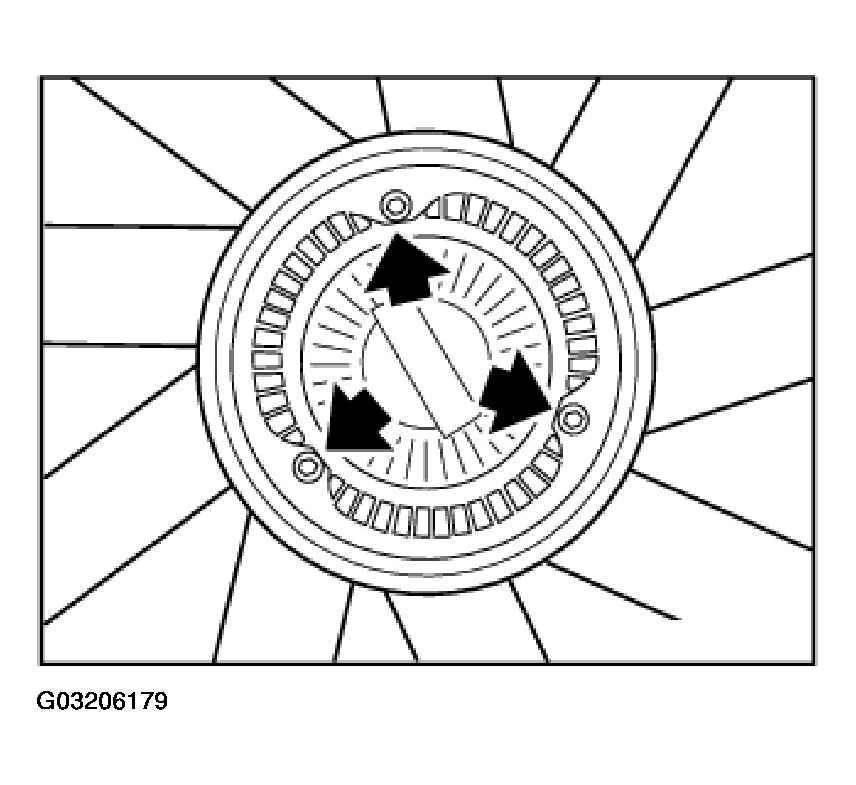

Fig 3: Detaching Fan From Fan Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
