11 12 503 Dismantling and reassembling cylinder head (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head removed)

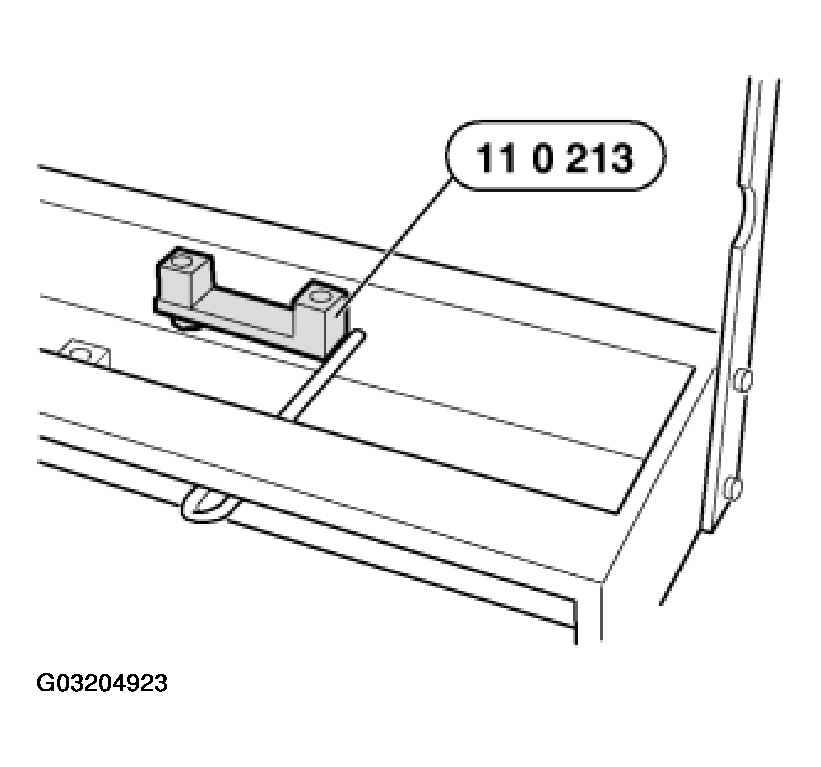

Screw special tool 11 0 213 to special tool 11 1 065.

Fig 1: Assembling Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

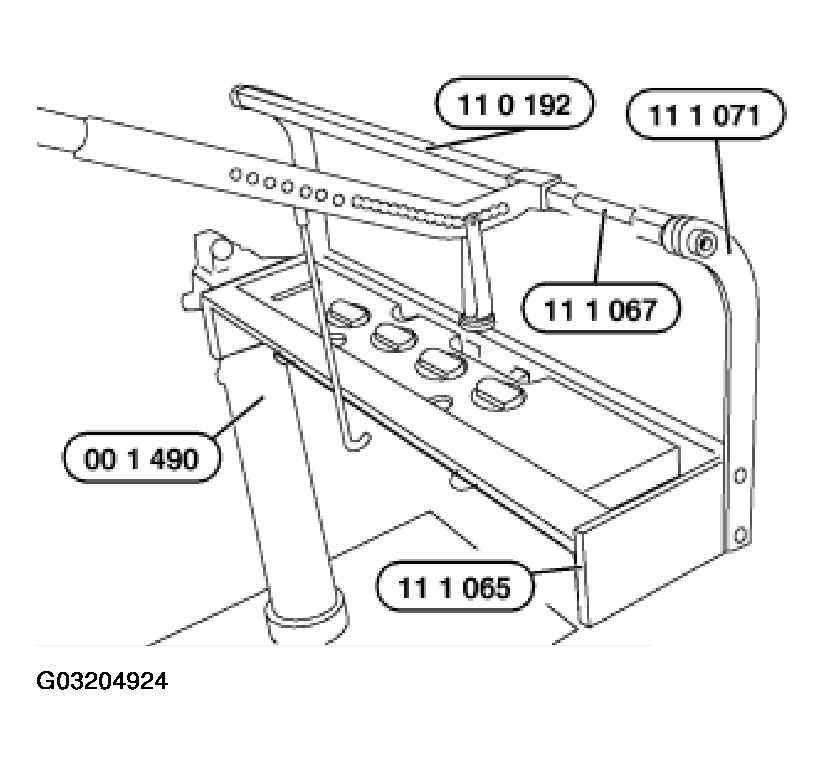

Secure special tool 11 1 065 to special tool 00 1 490.

Fig 2: Assembling Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

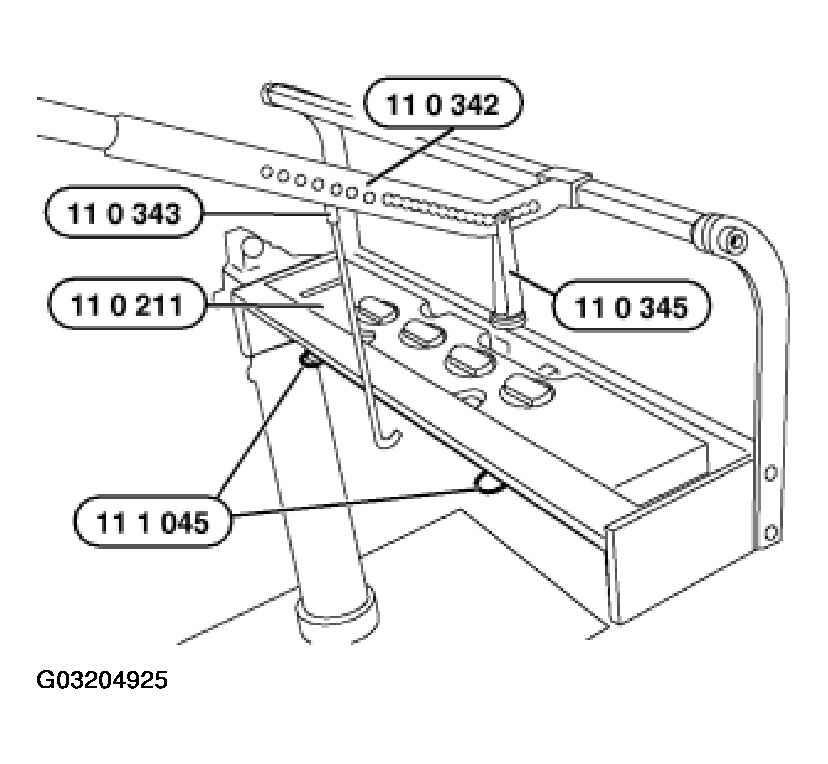

Provide special tools for disassembly of cylinder head:

Special tool 11 1 071
Special tool 11 1 067
Special tool 11 0 192

Special tool 11 1 045
Special tool 11 0 345
Special tool 11 0 342
Special tool 11 0 343
Special tool 11 0 211

Fig 3: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

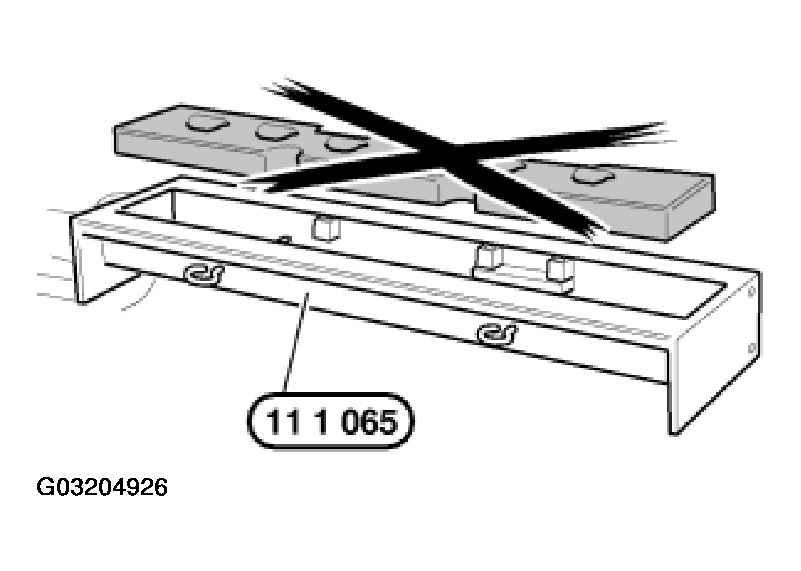

NOTE: At this point, do not yet install special tool 11 0 211 (support board) in special tool 11 1 065.

Fig 4: Identifying Special Tool 11 0 211

Courtesy of BMW OF NORTH AMERICA, INC.

Remove throttle assembly.

CAUTION: The work step Removing and installing throttle assembly contains important tips on installing the pull rods and the throttles,
refer to 13 54 030 REMOVING AND INSTALLING/REPLACING THROTTLE BODY (S62) .

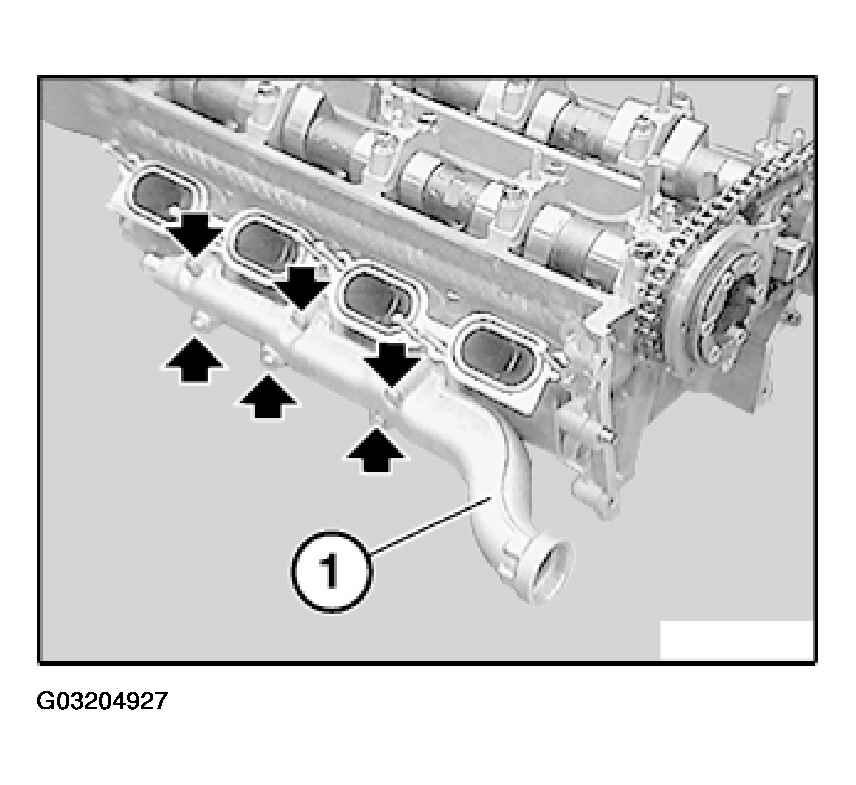

Unfasten screws.

Remove water pipe (1).

Fig 5: Removing Water Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

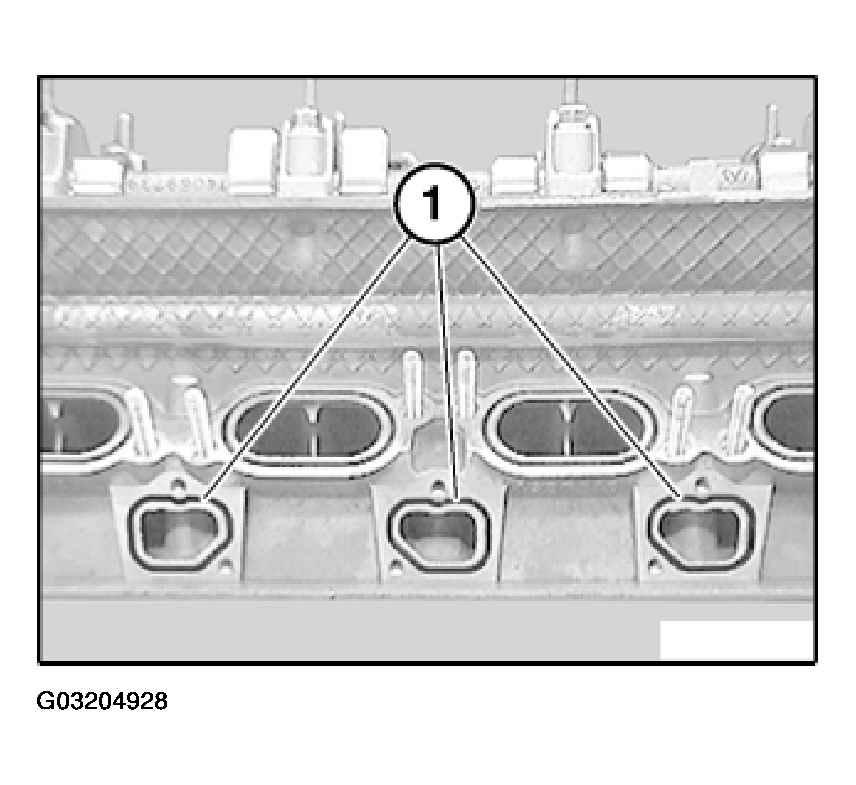

Replace gaskets (1).

Fig 6: Replacing Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage sealing surface.
If necessary, cover special tool 11 1 065 with plastic sheeting.

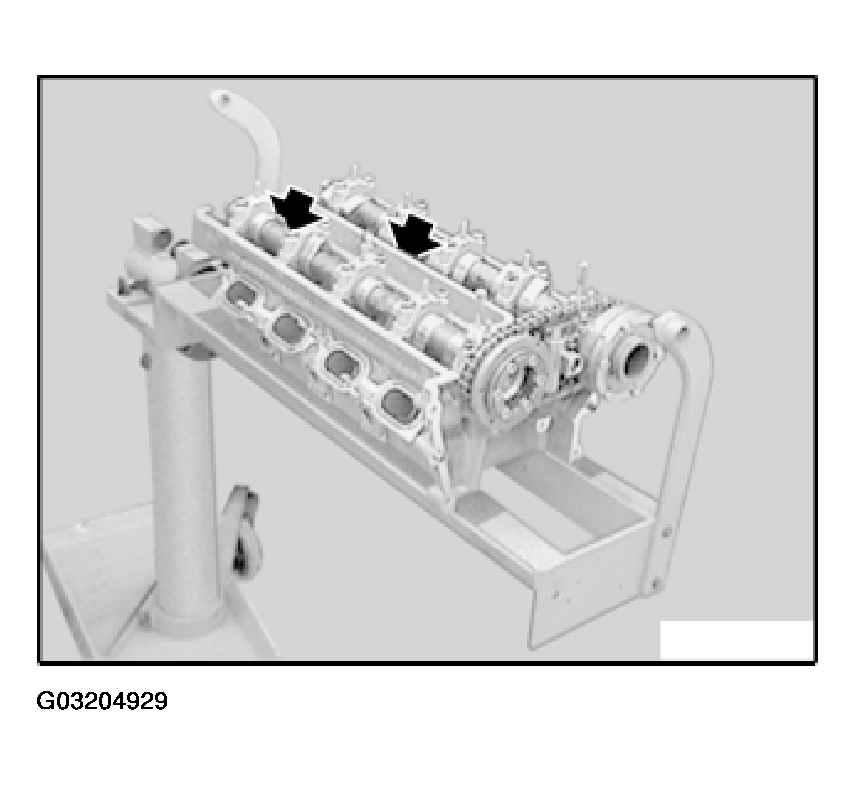

Fit cylinder head on special tool 11 1 065 and secure with two cylinder head screws.

Fig 7: Fitting Cylinder Head On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove camshafts.

This task is described in the section "Removing left/right camshafts",

refer to 11 31 011 REPLACING LEFT CAMSHAFTS (S62) and 11 31 015 Replacing right camshafts (S62) .

Remove all valve springs, refer to 11 34 715 REPLACING ALL VALVE SPRINGS (S62) .

Remove all valve stem seals, refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M62, S62) .

Remove all valves, refer to 11 34 552 REMOVING AND INSTALLING/REPLACING ALL VALVES (S62) .
