11 34 560 Replacing all valve stem seals (M62, S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head removed)

Preliminary tasks are described in disassembly and assembly of cylinder head, refer to 11 12 503 DISMANTLING AND REASSEMBLING CYLINDER HEAD (S62) .

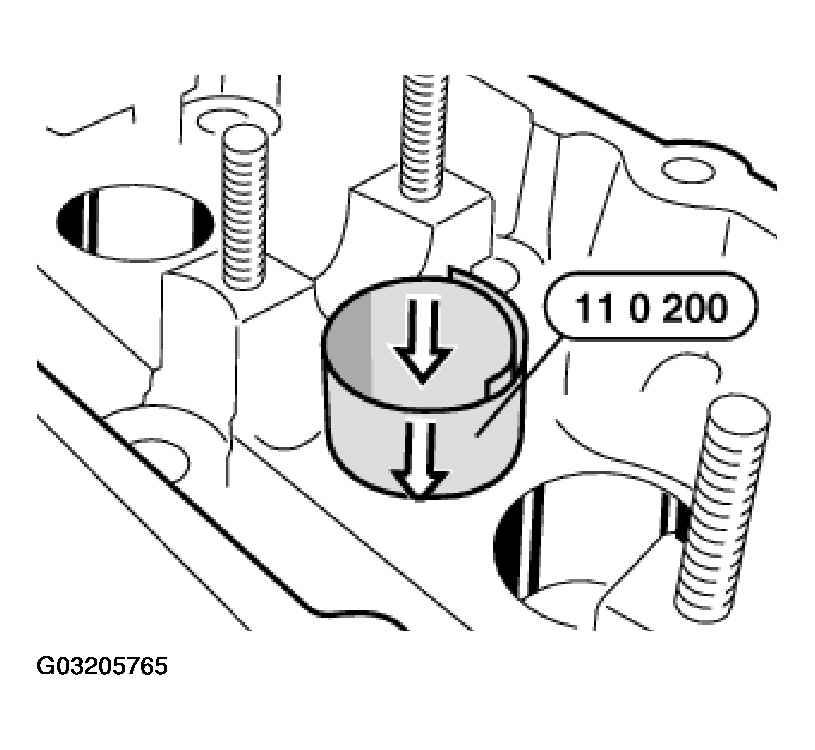

CAUTION: Do not damage races on bucket tappets. Insert protective film, special tool 11 0 200.

Fig 1: Inserting Protective Film

Courtesy of BMW OF NORTH AMERICA, INC.

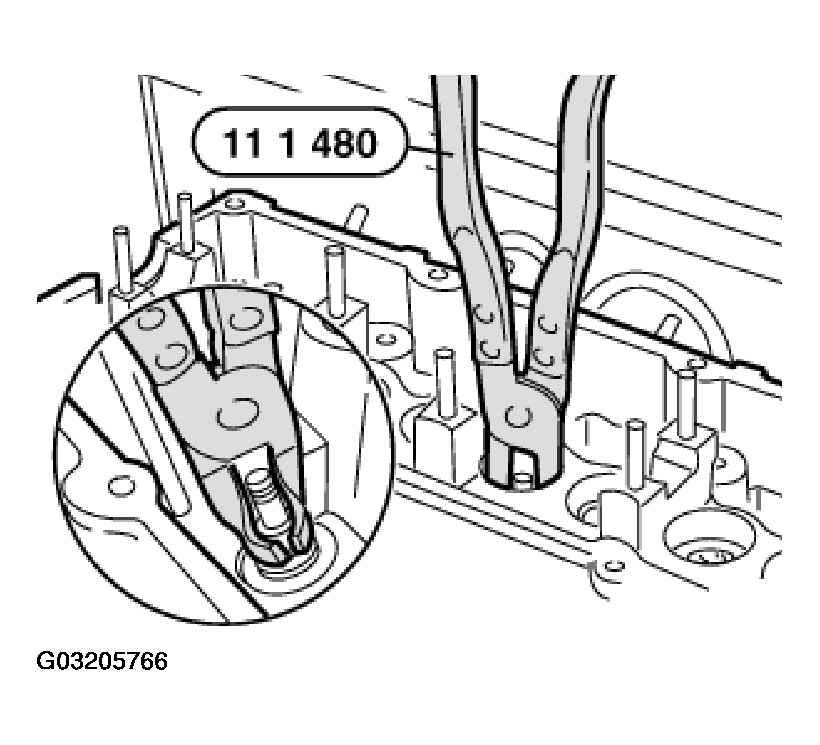

Remove valve stem seal with special tool 11 1 480.

Fig 2: Removing Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

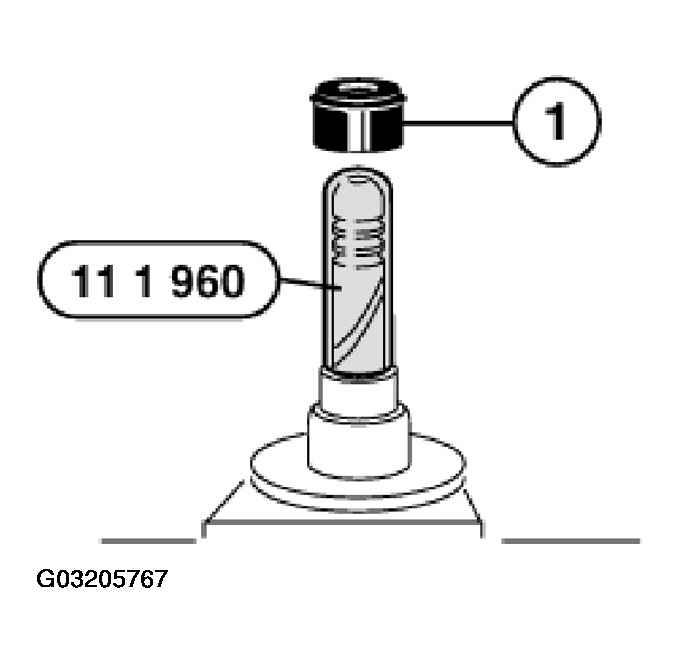

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960. Coat new valve stem seal (1) with oil and install.

Fig 3: Coating Valve Stem Seal With Oil

Courtesy of BMW OF NORTH AMERICA, INC.

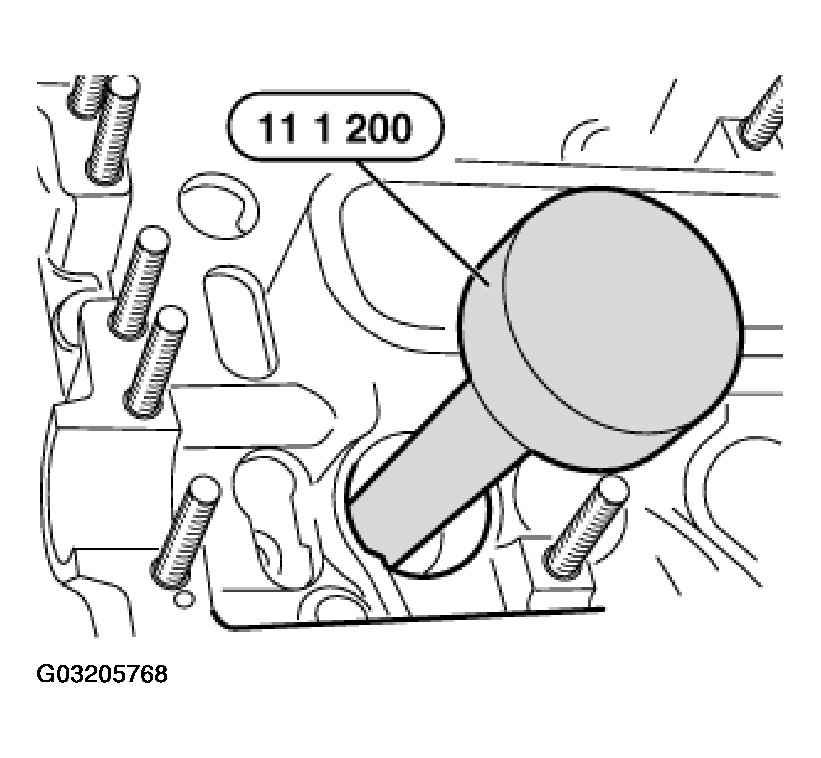

Press-fit valve stem seal firmly home by hand using special tool 11 1 200.

Remove special tool 11 1 960.

Fig 4: Installing Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.
