11 34 715 Replacing all valve springs (S62)

(cylinder head removed)

Preliminary tasks are described in disassembly and assembly of cylinder head, refer to 11 12 503 DISMANTLING AND REASSEMBLING CYLINDER HEAD (S62) .

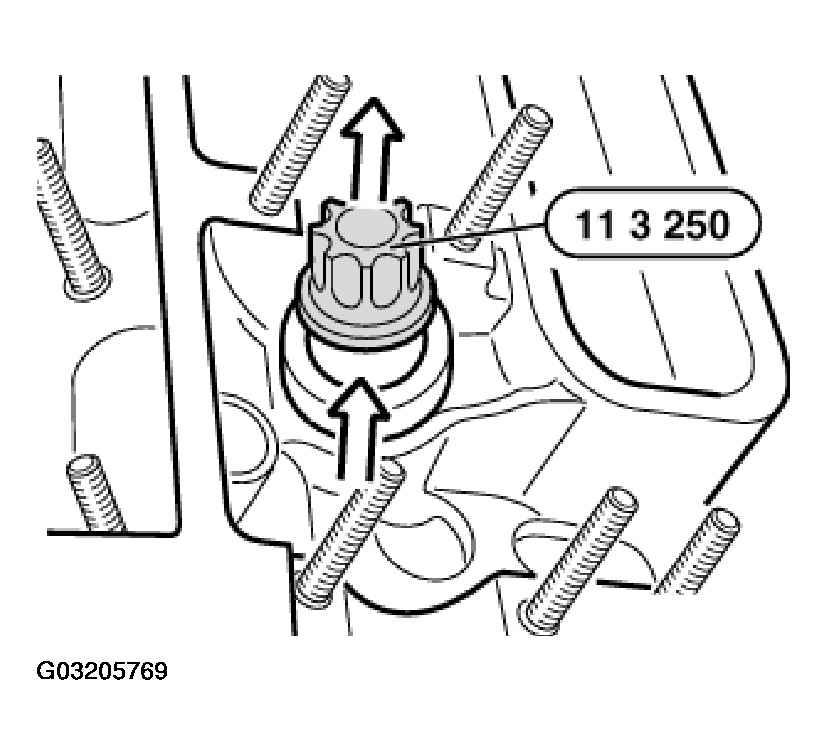

Remove bucket tappet with special tool 11 3 250.

Fig 1: Removing Bucket Tappet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Worn bucket tappets may only be reused in the same tappet bore.

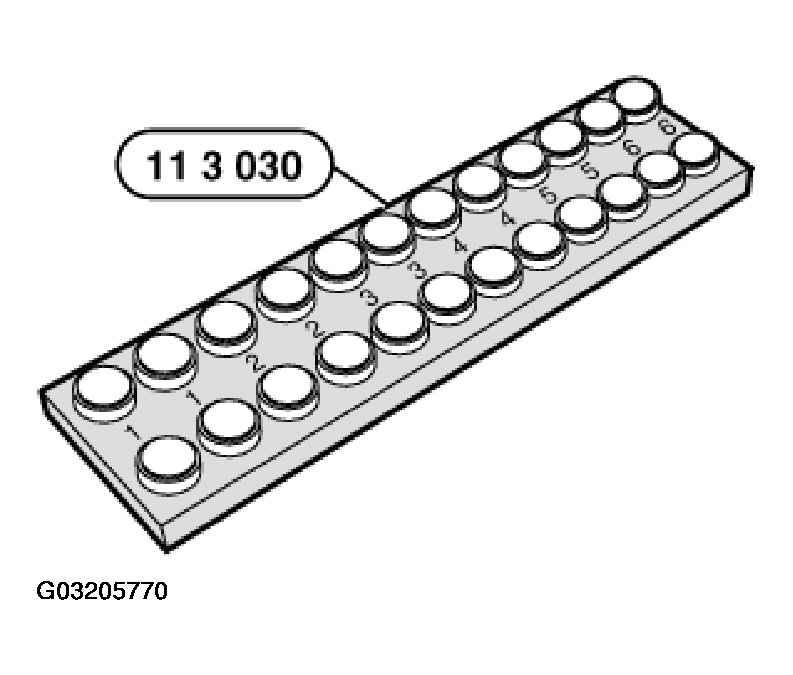

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

Fig 2: Arranging Bucket Tappets On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

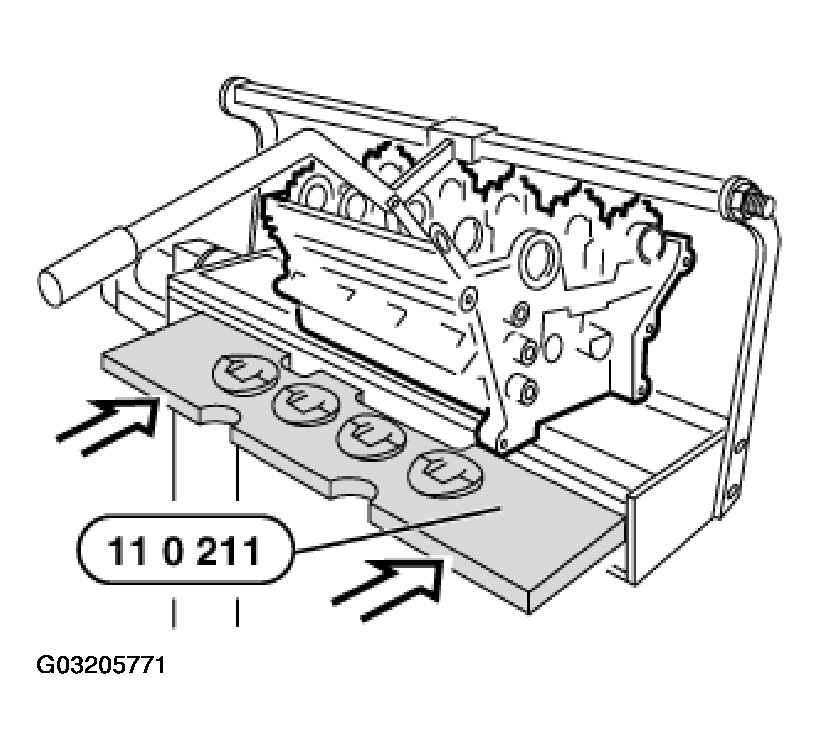

Fit special tool 11 0 211 from below in special tool 11 1 065 and secure with special tool 11 1 045.

Fig 3: Fitting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

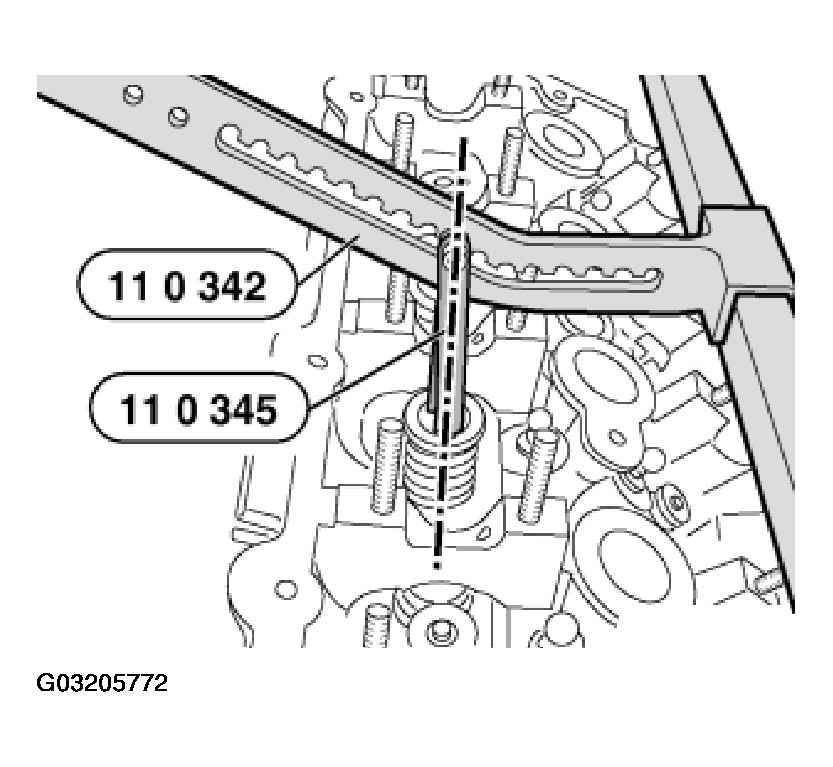

Align special tool 11 0 345 in direction of valve shaft. Select corresponding groove in special tool 11 0 342.

Fig 4: Aligning Special Tool In Direction Of Valve Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

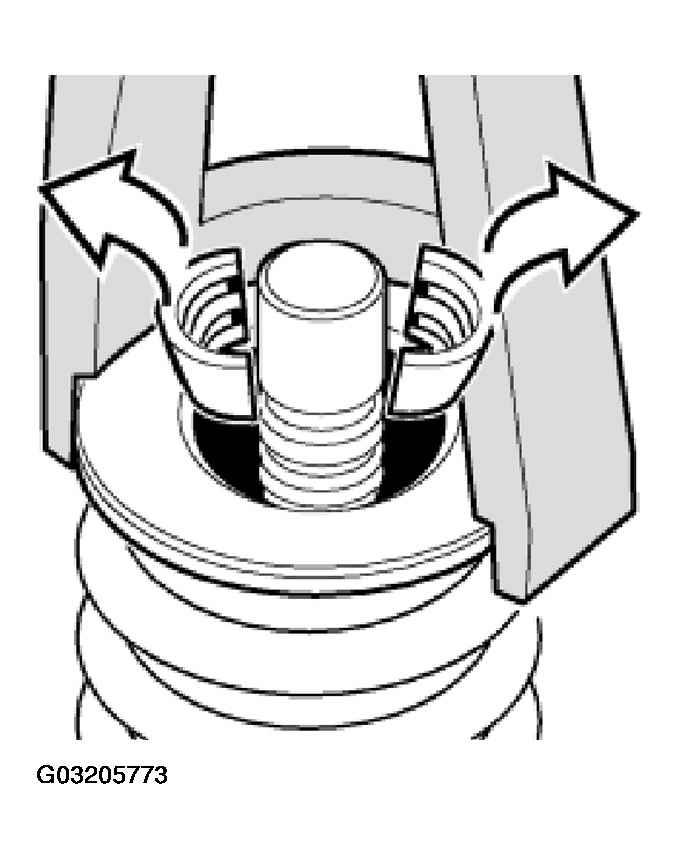

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

Fig 5: Removing Valve Spring And Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

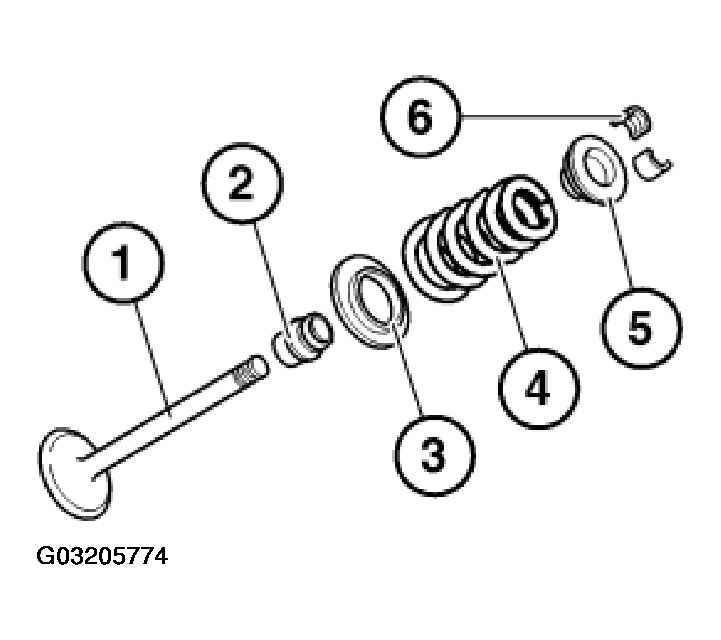

Arrangement:

1. Valve
2. Valve-stem seal
3. Lower plate spring
4. Valve spring
5. Top plate spring
6. Valve tapers

Fig 6: Exploded View Of Valve Components

Courtesy of BMW OF NORTH AMERICA, INC.
