32 41 285 Replacing the oil level sensor for oil reservoir (N63T): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove front left SUSPENSION CROSS-BRACE
Remove INTAKE PORT FOR AIR FILTER HOUSING

Release screws (1) from oil reservoir (2).

Tightening torque 32 41 1AZ/2AZ .

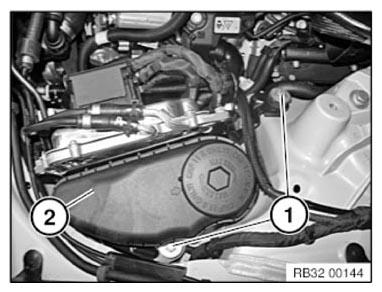

Fig 1: Identifying Oil Reservoir Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise the oil reservoir and/or push it forward in order to gain better access to plug connection (1).

Disconnect plug connection (1).

Turn level switch (2) anti-clockwise through approx. 45° and remove towards bottom.

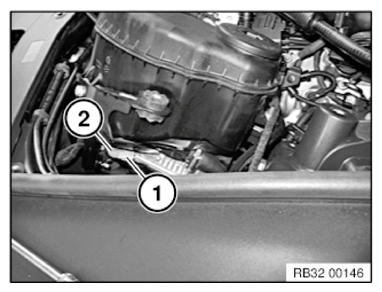

Fig 2: Identifying Oil Level Switch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
