51 32 390 Removing and installing/replacing decorative strip on front left or right door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove mirror on front door. 51 16 000 Removing And Installing/Replacing Mirror On Left Or Right Front Door .

Remove trim on window frame of front door. 51 32 420 Removing And Installing/Replacing Finisher On Front Door Window Frame, Left Or Right .

Remove cover (anti-trap protection) on inside of door window frame. 51 32 160 Removing And Installing/Replacing Cover (Anti-Trapping Protection) On Door Window Frame, Left Or Right .

Open door window.

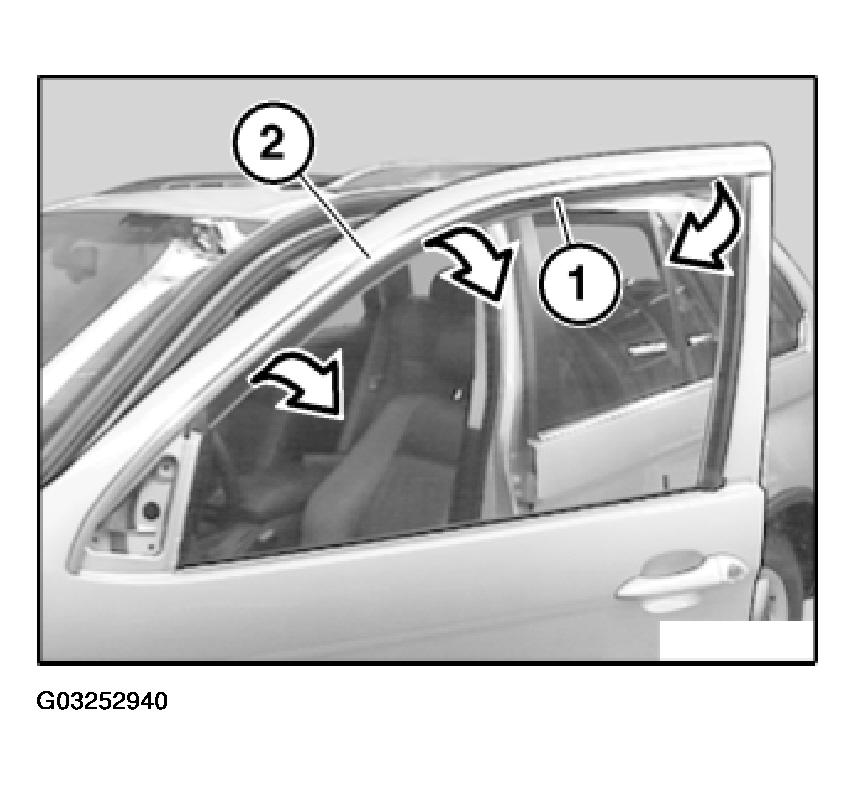

Pull off window rubber guide (1) in area of decorative strip (2).

Fig 1: Pulling Off Window Rubber Guide In Area Of Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

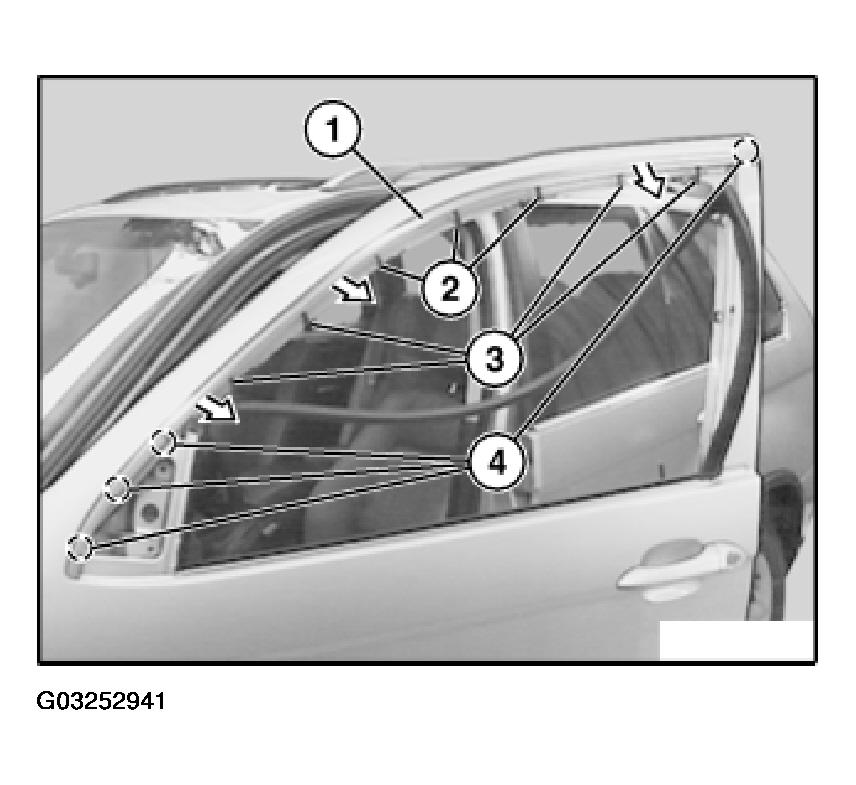

Unfasten screws (2).

Carefully unclip clips (4).

Detach decorative strip (1) outwards from clips (3).

Fig 2: Detaching Decorative Strip Outwards From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

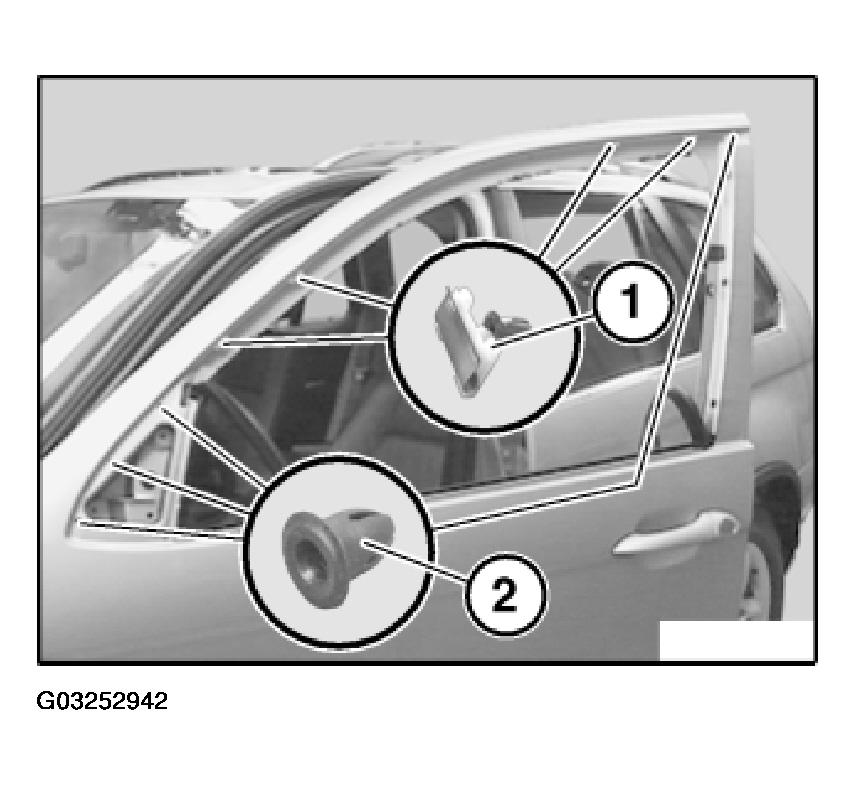

If necessary, replace faulty clips (1) and grommets (2).

Fig 3: Checking Faulty Clips And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

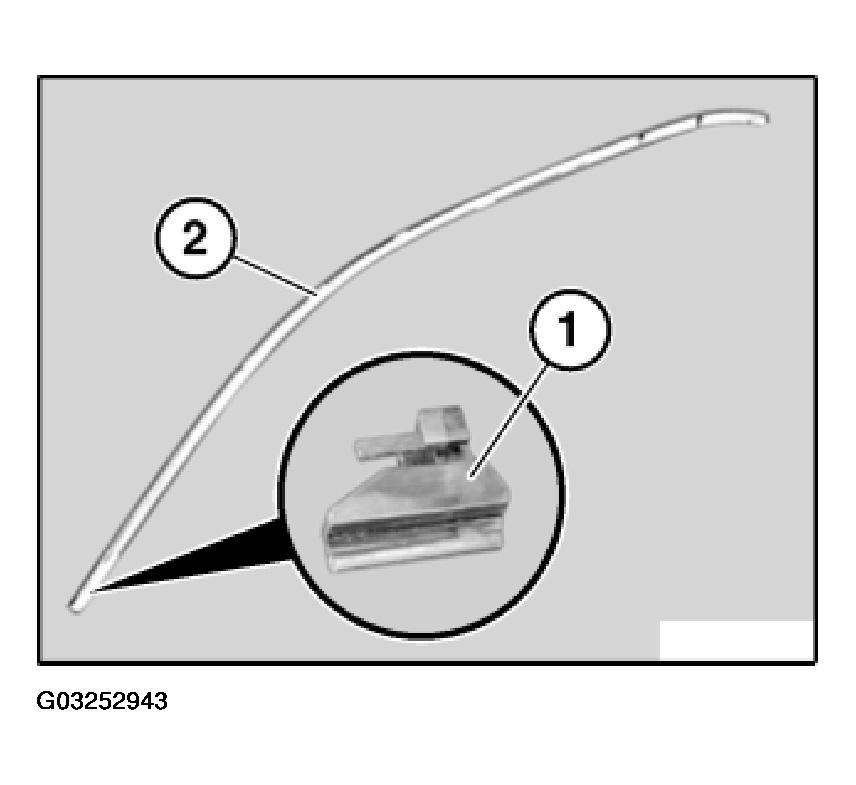

If necessary, replace defective clip (1).

Fig 4: Inspecting Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

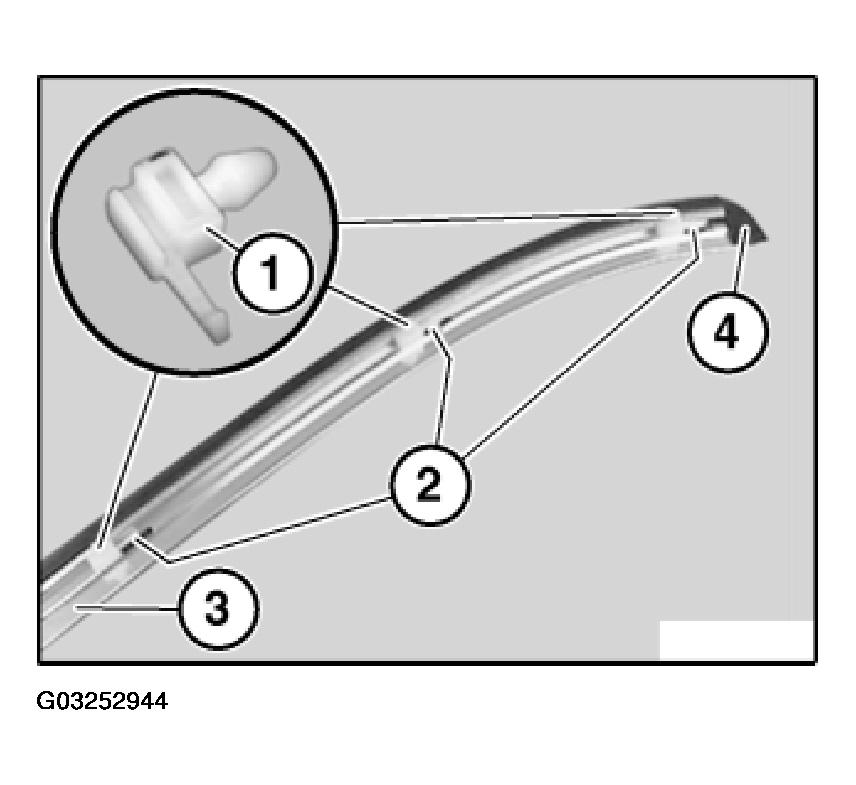

If necessary, replace defective clips (1).

Decorative strip (3) incorporates notches (2) for positioning of clips (1).

After installing clips (1), reinsert seal (4) in guide of decorative strip (3).

Fig 5: Reinserting Seal In Guide Of Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
