51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove speaker in window frame of front door.

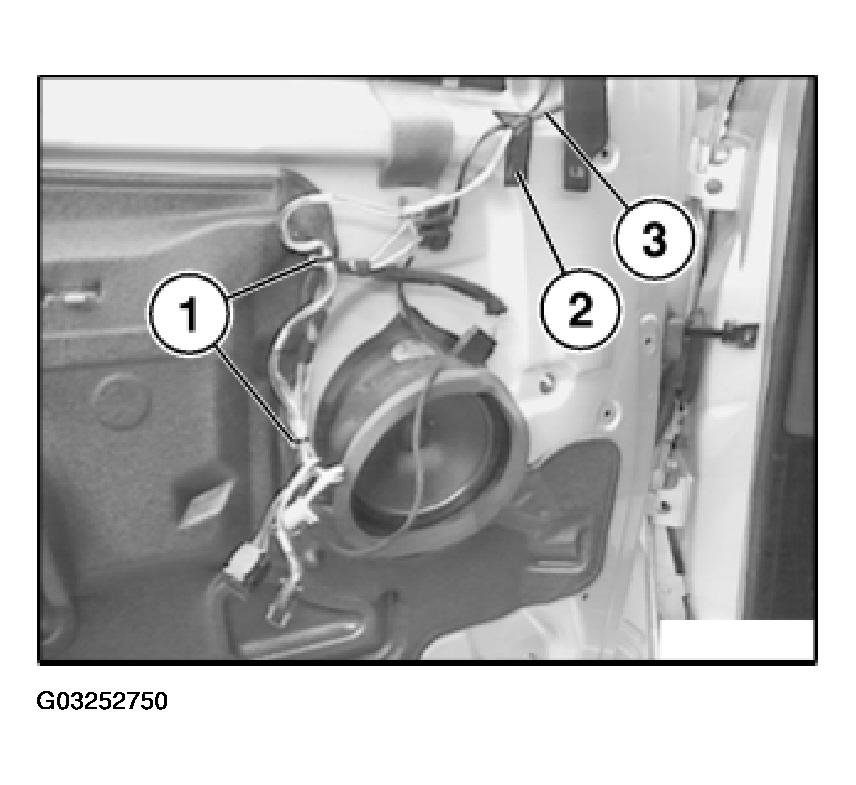

Unfasten cable clip (1).

Pull off adhesive tape (2) and expose wire (3).

Fig 1: Pulling Off Adhesive Tape And Expose Wire

Courtesy of BMW OF NORTH AMERICA, INC.

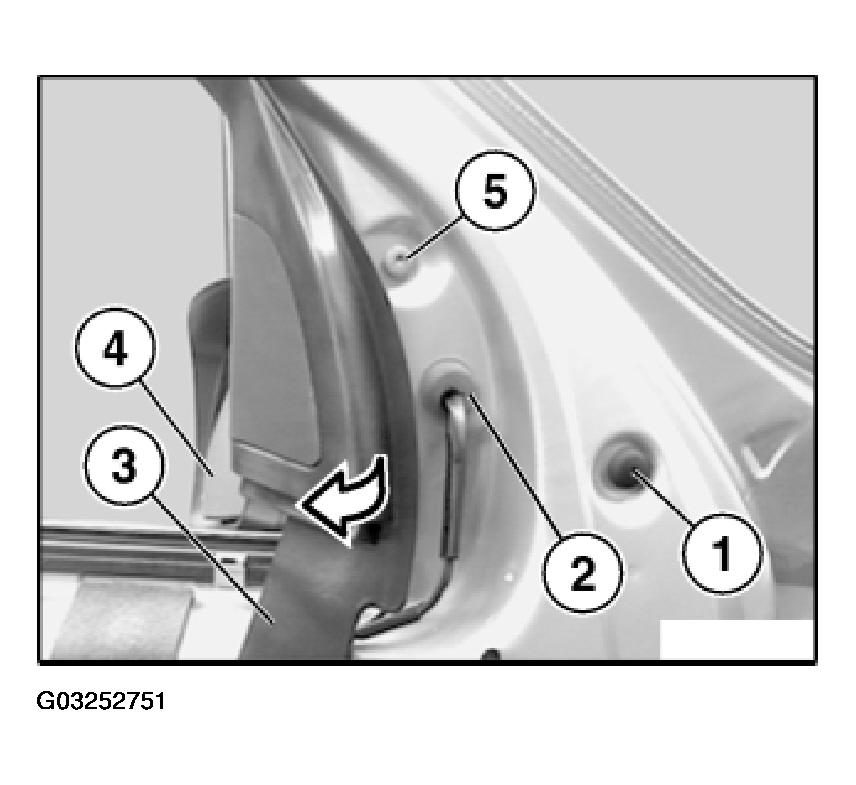

Lever out cover (1) and release screw underneath.

Pull cover (3) to one side.

Release screw (5) and detach mirror (4) with cable (2).

Installation:

Tightening torque, see 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 2: Releasing Screw And Detaching Mirror With Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

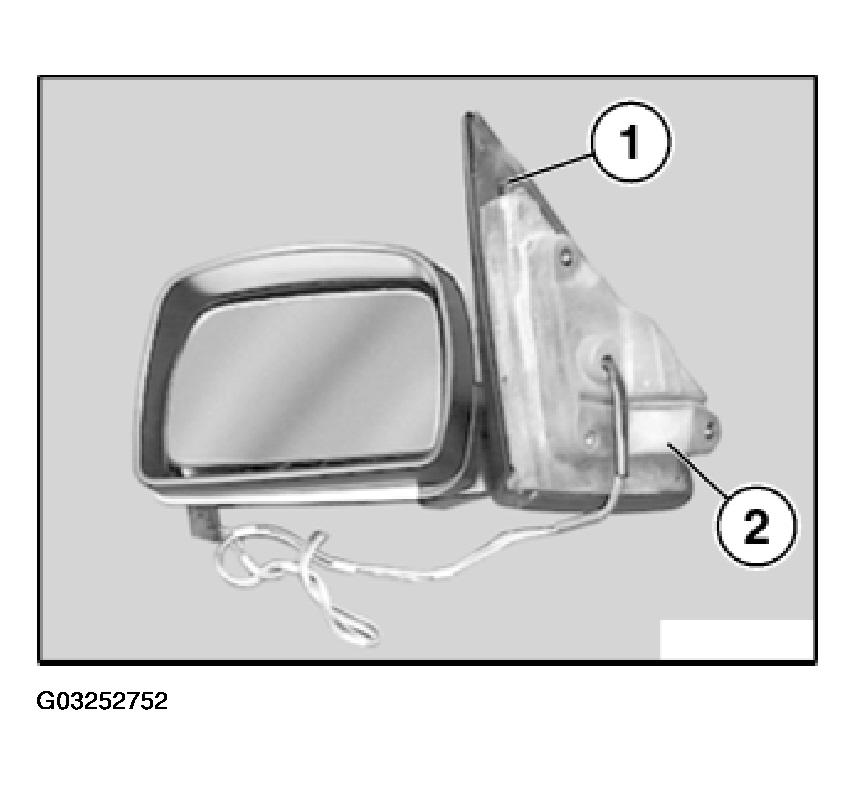

Install mirror base with seal (1) and sound insulation (2).

Carry out function check.

Fig 3: Installing Mirror Base With Seal

Courtesy of BMW OF NORTH AMERICA, INC.
