51 32 160 Removing and installing/replacing cover (anti-trapping protection) on door window frame, left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. See 51 41 000 Removing And Installing Left Or Right Front Door Trim Panel .

Rear for outside trim (51 32 420) only:

Carefully lever out clip (1) and lever out cover (2) in rear area.

Additionally for complete removal:

Disconnect plug connection (3).

Carefully lever out clip (4) and lever out cover (2) completely.

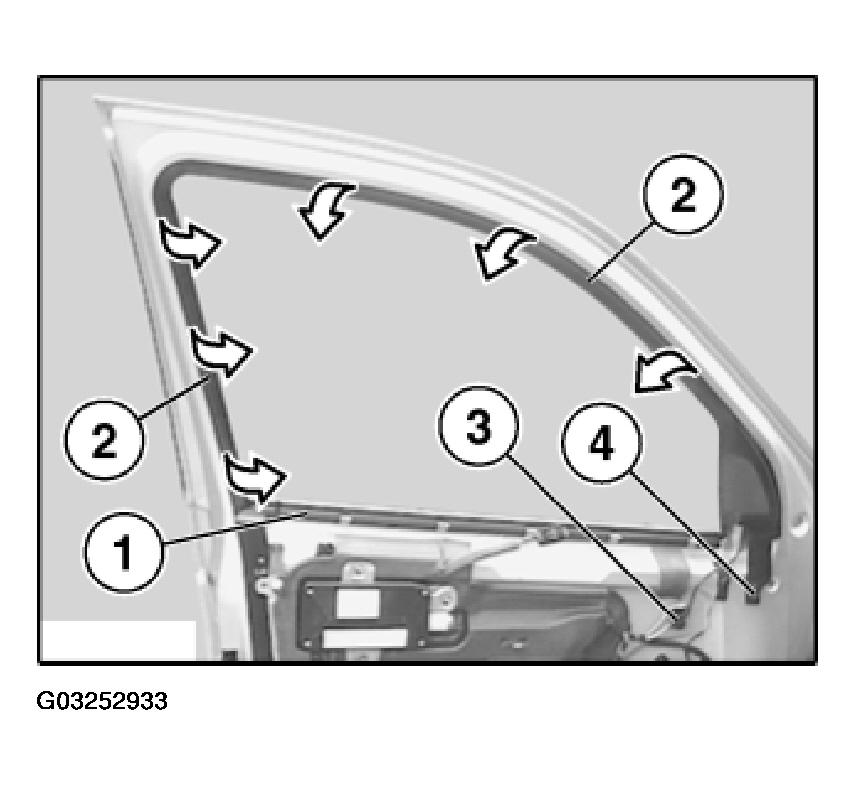

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If applicable, replace defective clips (1).

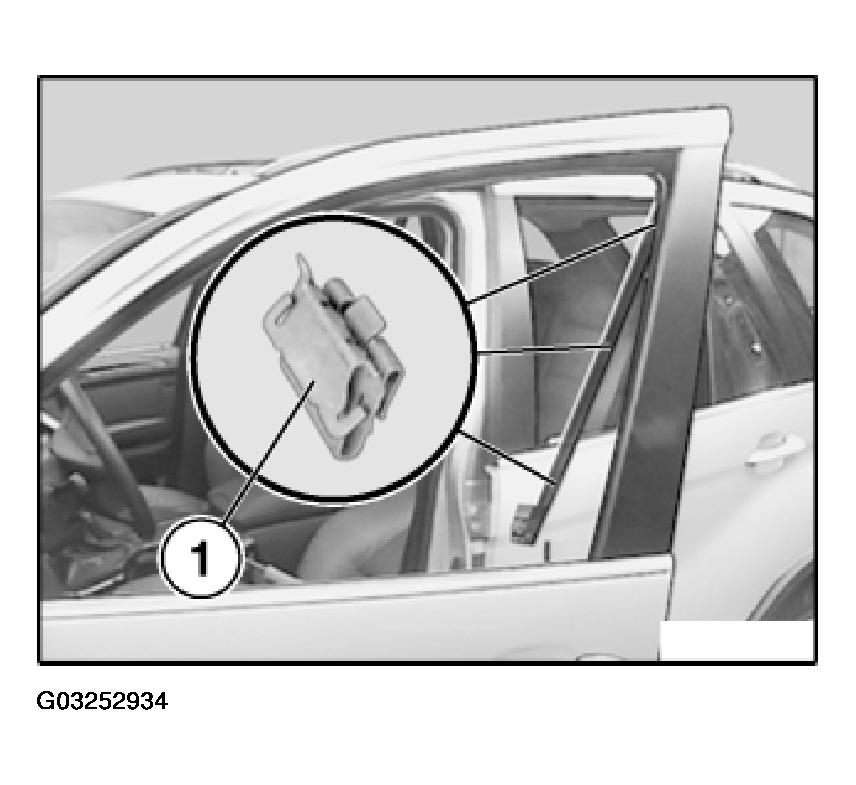

Fig 2: Inspecting Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) on cover (2) must not be damaged.

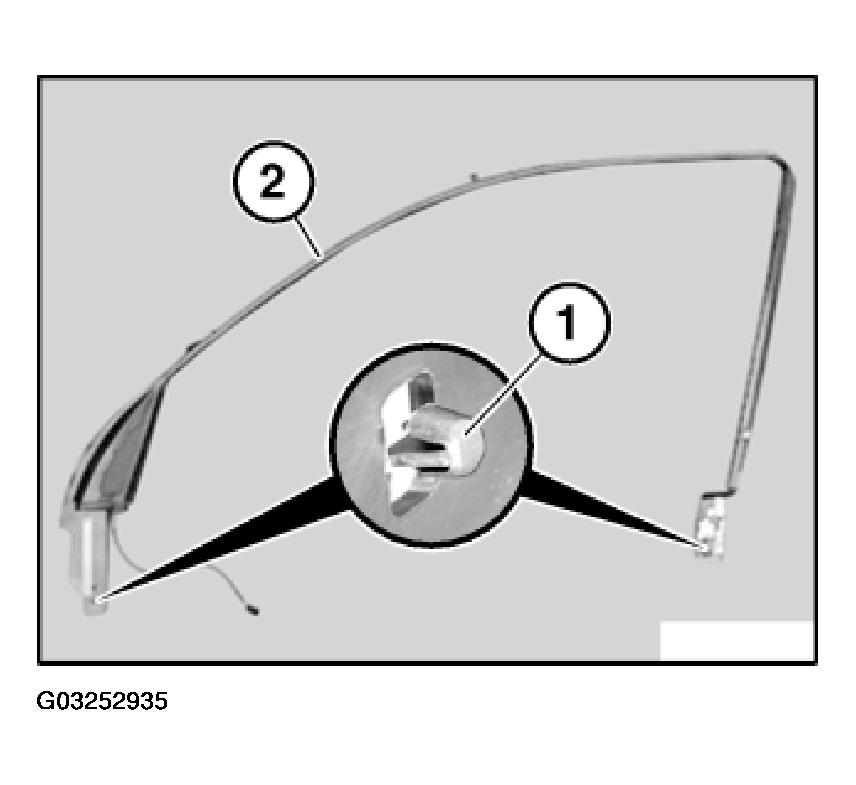

Fig 3: Checking Clips On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
