51 11 157 Replacing front bumper trim
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Unscrew and remove license plate.
- Remove front bumper trim. See 51 11 156 Removing And Installing Front Bumper Trim .
- Remove holder for number/license plate. See 51 11 158 Replacing Baseplate For License Plate .
- Remove both fog lamp inserts (complete). See 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LIGHT .
- If necessary, remove grill for bumper trim. See 51 11 180 Removing And Installing/Replacing Trim Grill For Bumper Trim .

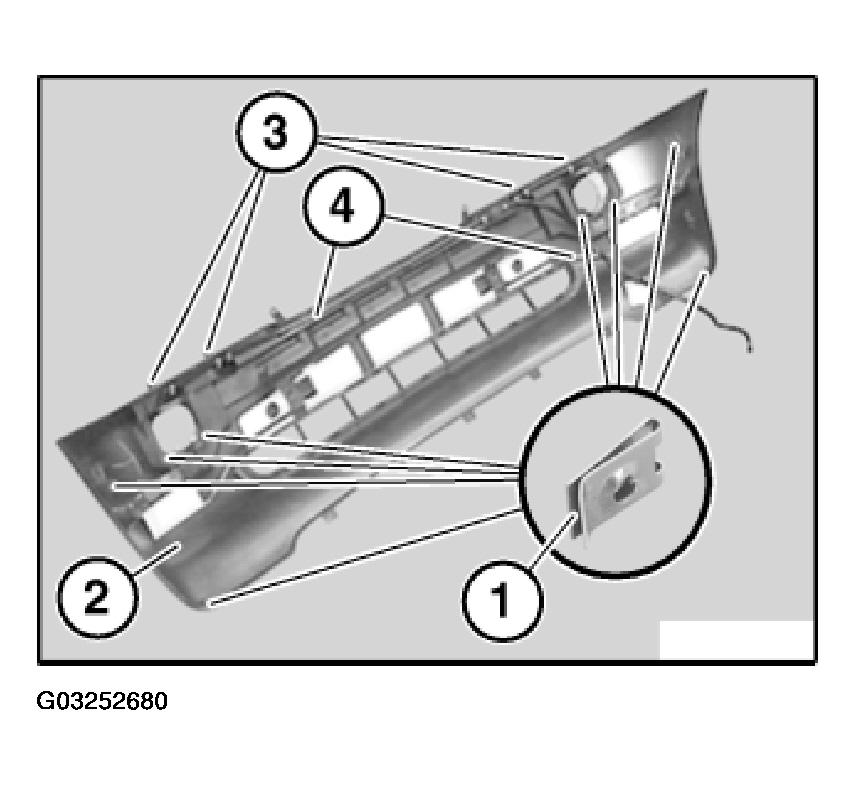

Remove metal nuts (1) from bumper trim (2).
Version with headlight cleaning system:
If necessary, remove jet nozzles (3).
If necessary, feed hose (4) out of holders on bumper trim (2) and remove.
Version with Park Distance Control:
If necessary, remove ultrasonic sensors.
