51 11 156 Removing and installing front bumper trim (up to 10/03)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Version with headlight cleaning system:

NOTE: Have a rubber plug on hand and, after detaching hose (3), seal pump outlet (4).

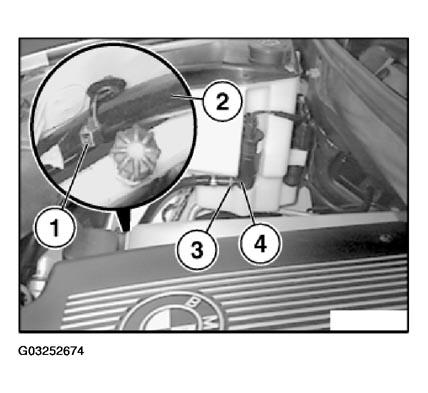

Detach cable tie (1) from hose (2).

Unlock hose (3), detach and seal pump outlet (4).

Fig 1: Detaching And Seal Pump Outlet

Courtesy of BMW OF NORTH AMERICA, INC.

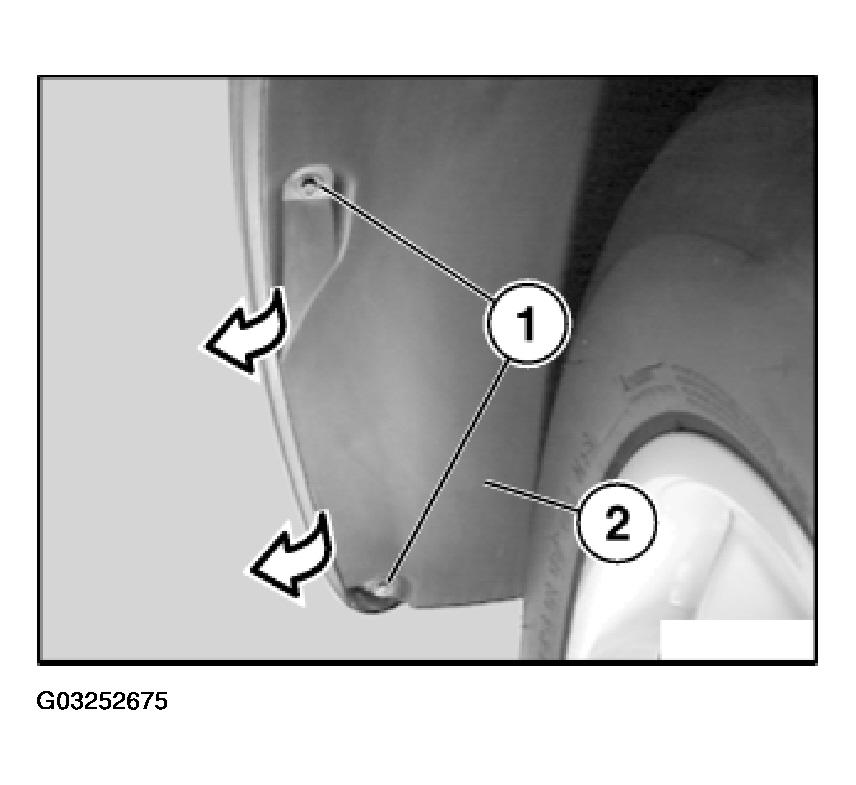

Release screws (1) on left/right and lift out wheel arch finishers (2) at side.

Fig 2: Releasing Screws On Left/Right And Lift Out Wheel Arch Finishers

Courtesy of BMW OF NORTH AMERICA, INC.

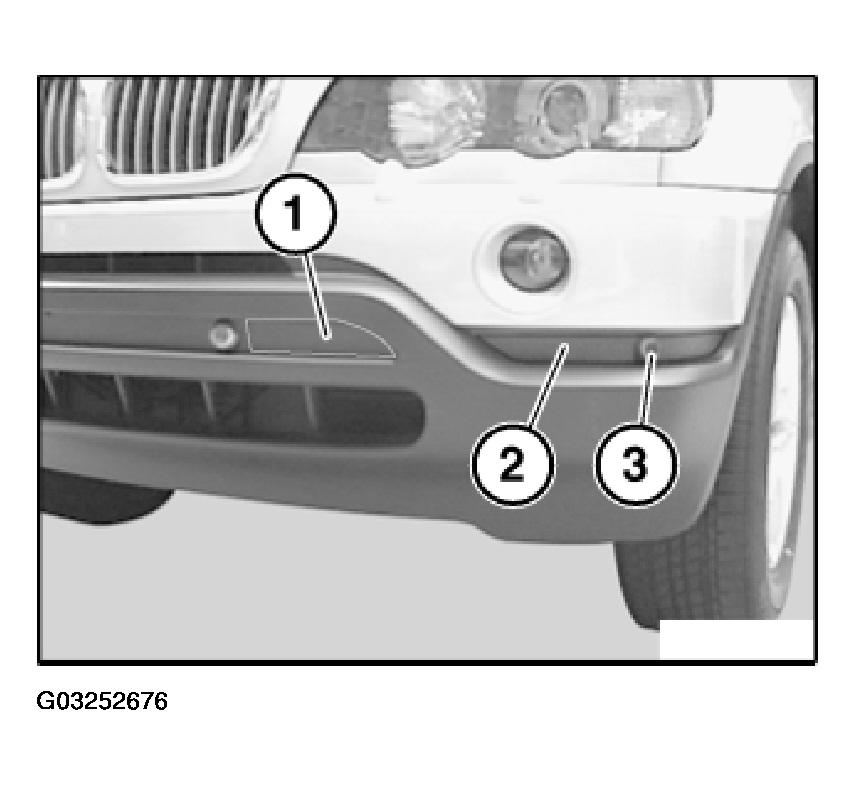

Lever out finishers (1 and 2) on left/right and remove.

Version with Park Distance Control:

Disconnect plug connection on ultrasonic sensors (3) and remove finisher (2).

Fig 3: Disconnecting Plug Connection On Ultrasonic Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Raise hood lid.

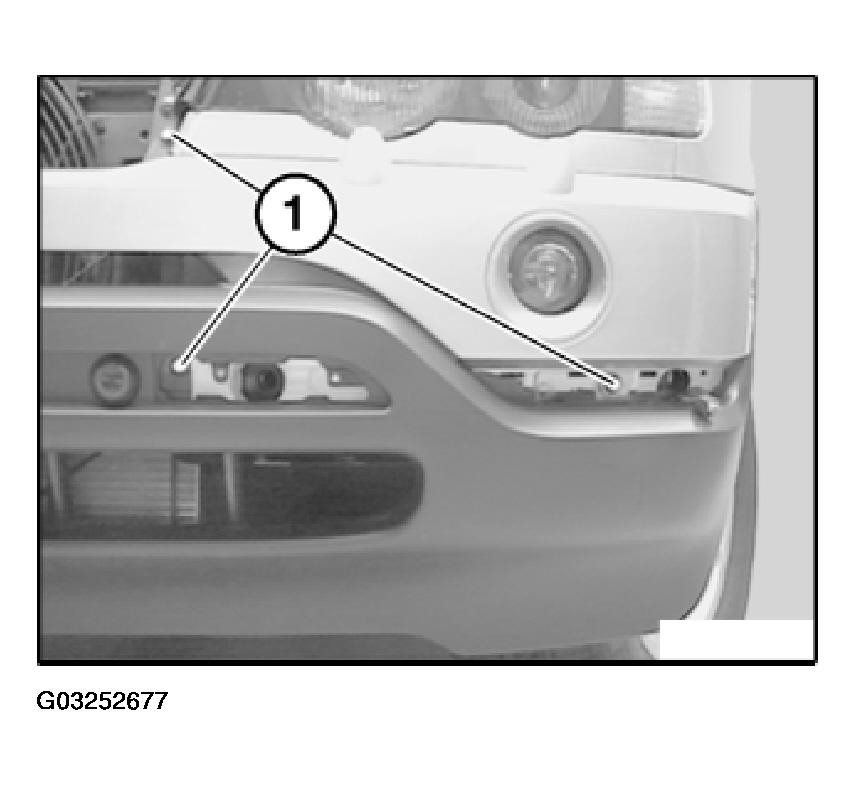

Release screws (1) on left/right.

Installation:

Fig 4: Releasing Screws On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Version with Park Distance Control and/or front fog lamps:

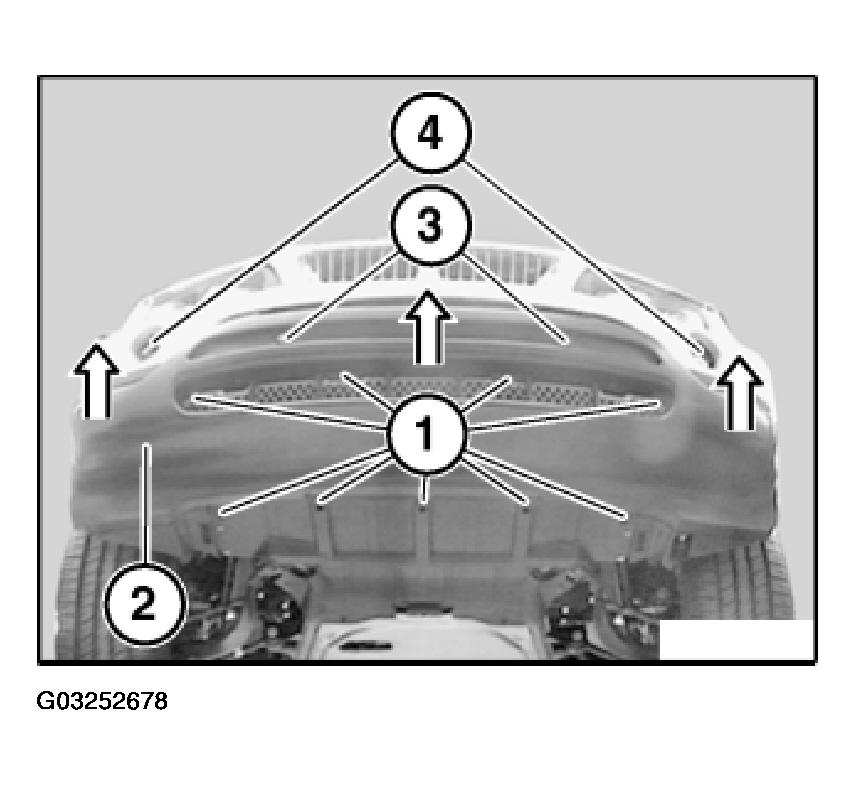

If necessary, pull bumper trim (2) forward a little and disconnect plug connections on ultrasonic sensors (3) and fog lamps (4).

Pull off bumper trim (2) and set down on a clean surface.

Fig 5: Removing Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

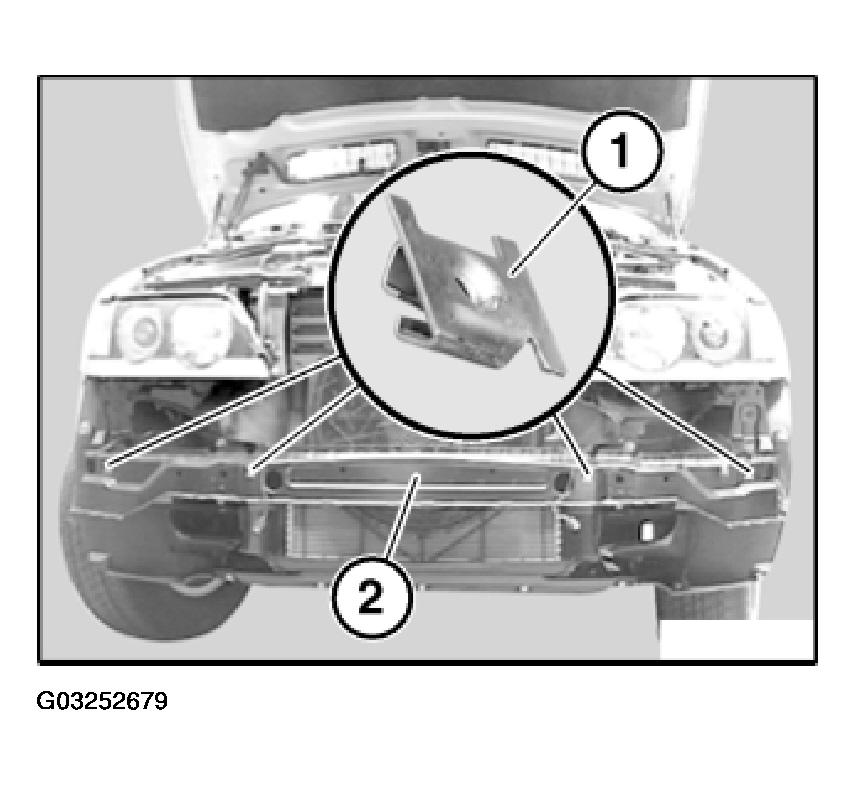

If necessary, replace faulty retainers (1) in carrier (2).

Fig 6: Replacing Faulty Retainers
