51 11 180 Removing and installing/replacing trim grille for bumper trim (up to 10/03)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim.

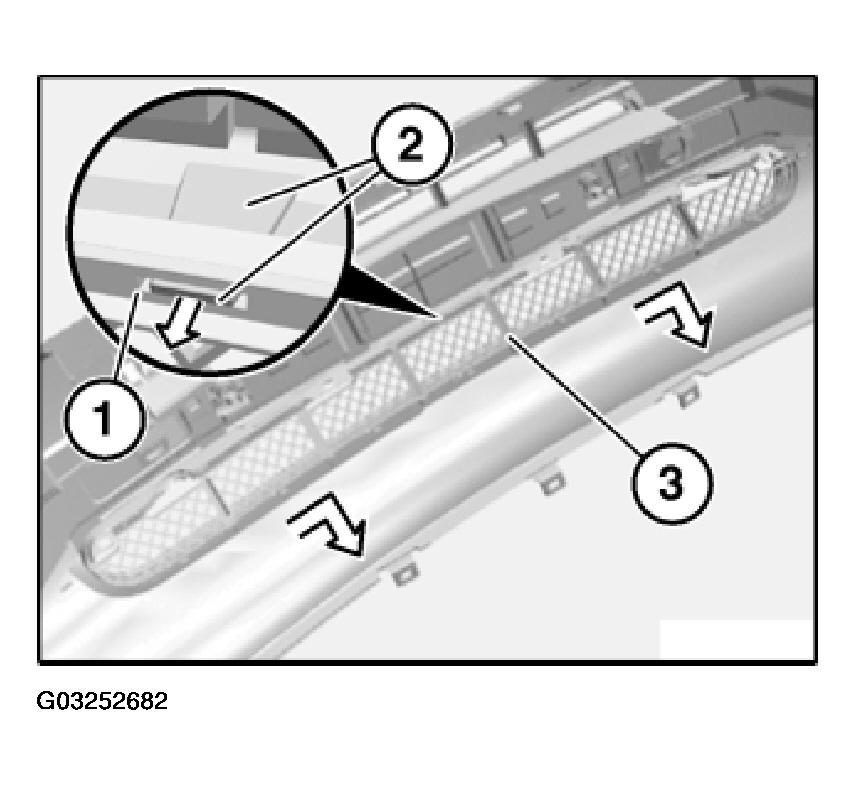

Lever out rib (1) from fixture (2) and unhook grill (3) to right/rear.

Fig 1: Removing Front Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

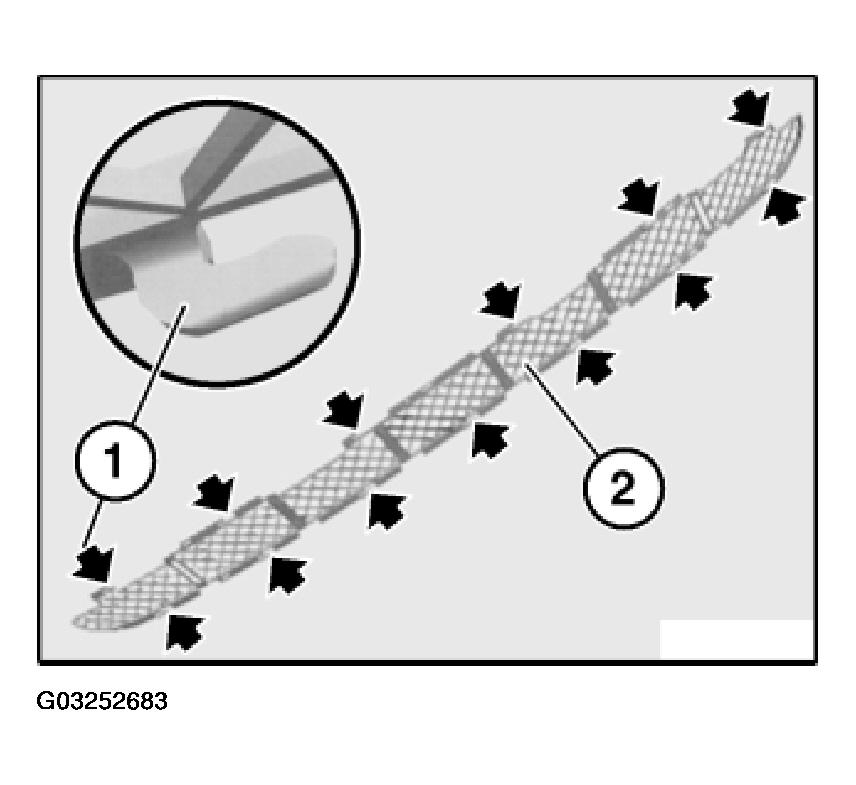

Hooks (1) of trim (2) must not be damaged.

Fig 2: Checking Hooks Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
