35 21 000 Removing and installing/replacing brake pedal

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower right trim from instrument panel. See 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, LOWER RIGHT .

If necessary, remove panel for pedal assembly. 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

If necessary, remove reinforcement plate and switch unit.

NOTE: After installation: Adjust brake light switch.

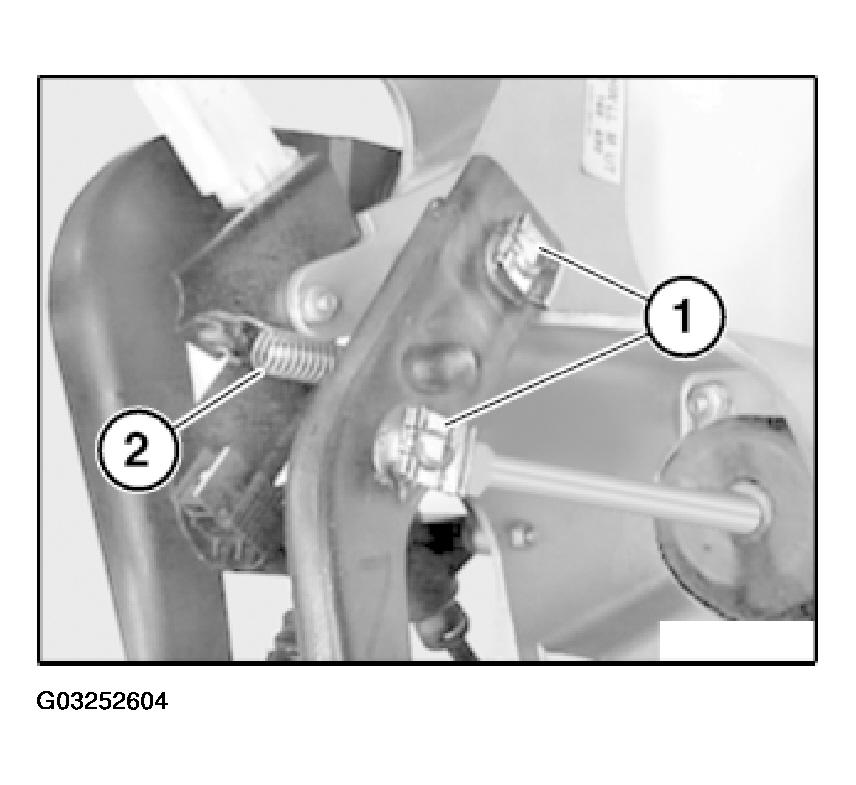

Raise lugs on retainers (1) and detach retainers. Unhook spring (2).

Fig 1: Raising Lugs On Retainers And Detaching Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

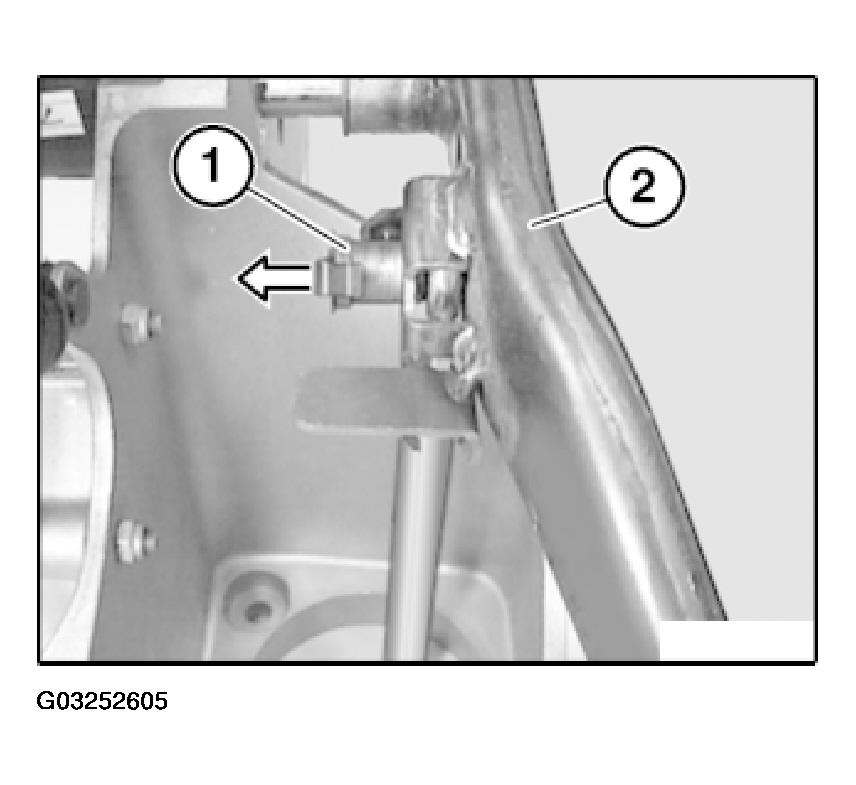

Pull out retaining pin (1) and detach piston rod from brake pedal.

Remove brake pedal (2).

Fig 2: Pulling Out Retaining Pin And Detaching Piston Rod From Brake Pedal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

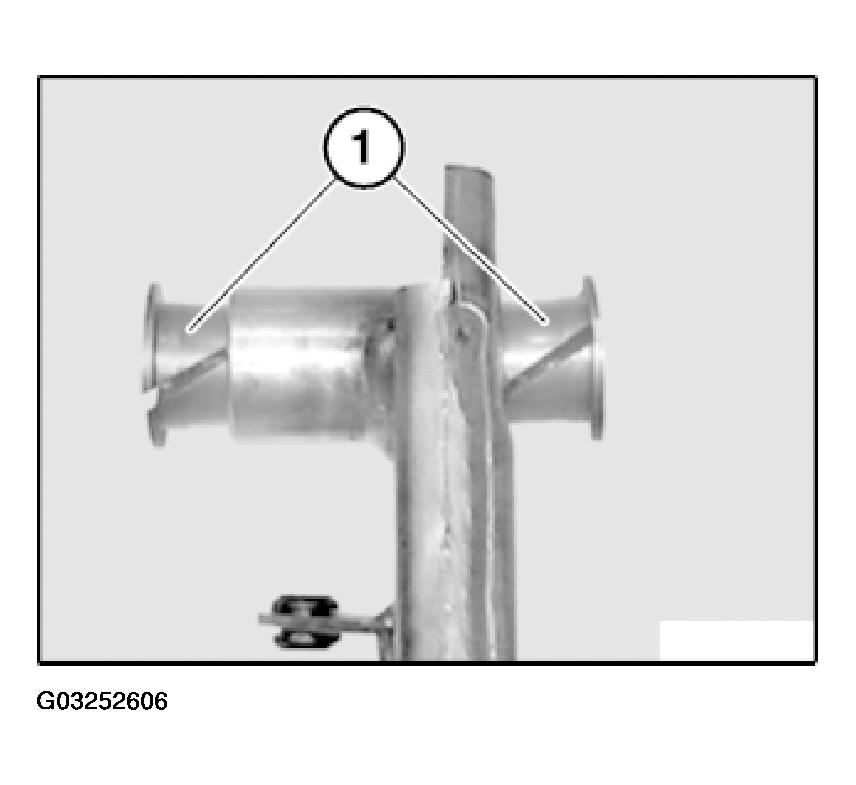

Check bearing bushes (1) and replace if necessary.

Apply a light coat of grease to bearing bushings (1) and bore.

Fig 3: Checking Bearing Bushes

Courtesy of BMW OF NORTH AMERICA, INC.
