51 45 185 Removing and installing/replacing trim for pedal assembly
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

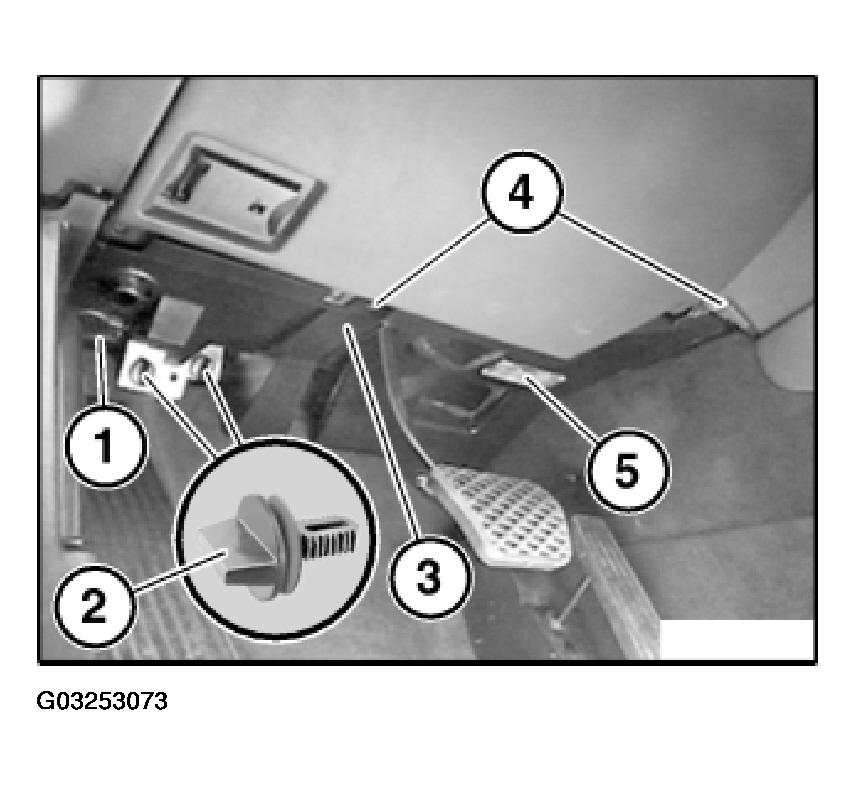

Unlock gong (1) and remove from trim (3).
Release screws (4).
Turn toggle (2) and remove.
Lower trim (3) a little and disconnect plug connection for footwell light (5).
Remove trim (3).
Replacement only:
Lever out footwell light (5).
Courtesy of BMW OF NORTH AMERICA, INC.
