51 45 181 Removing and installing/replacing trim for instrument panel, bottom right
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

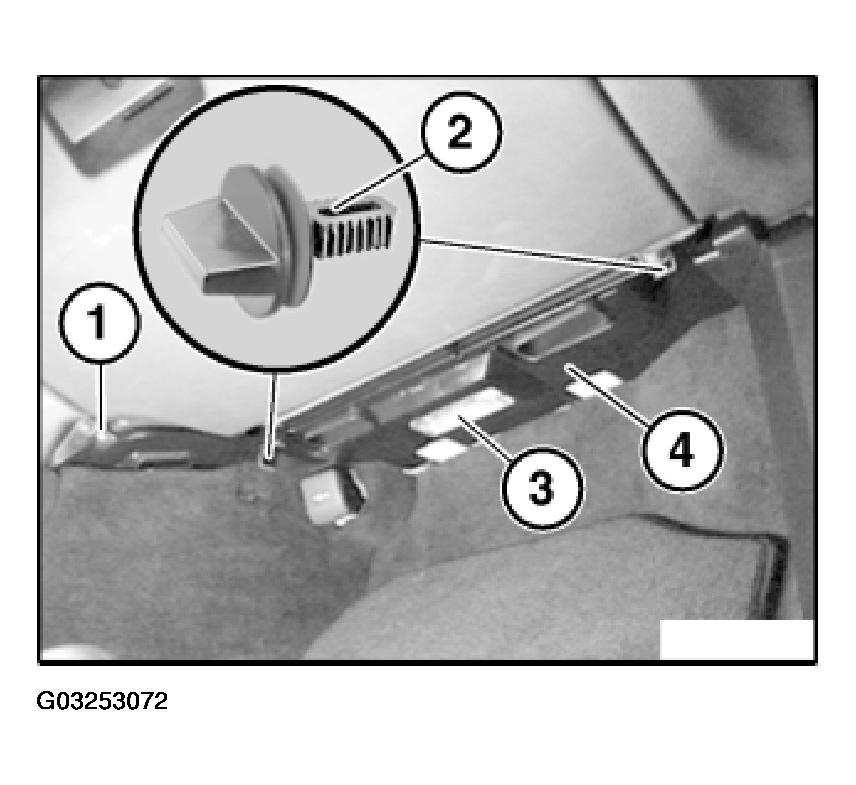

Release screw (1).
Turn toggle (2) and remove.
Lower trim (4) a little and disconnect plug connection for footwell light (3).
Remove bottom right trim (4) for instrument panel.
Replacement only:
Lever out footwell light (3).
