54 12 190 Removing and installing/replacing stop for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass slide/tilt sunroof lid
Remove rain gutter
Remove wind deflector

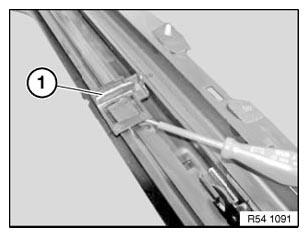

Lever out garage stop (1) with a screwdriver.

Fig 1: Removing Garage Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Advance connecting element (1) over opening.

Fig 2: Removing Connecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

Slide carriage (1) for rain gutter forwards up to opening and lever out.

Fig 3: Sliding Carriage For Rain Gutter

Courtesy of BMW OF NORTH AMERICA, INC.
