54 12 497 Removing and installing/replacing wind deflector for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Open glass slide/tilt sunroof.

Carefully unhook wind deflector (1) on left and right.

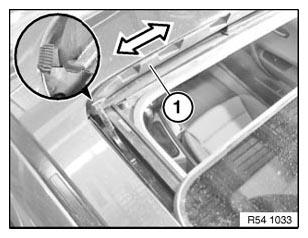

Fig 1: Unhooking Wind Deflector On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Lift wind deflector in direction of arrow (1).

Pull positioning spring (3) on left and right in direction of arrow (2) out of casing.

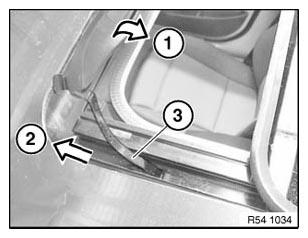

Fig 2: Pulling Positioning Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to existing rubber stops.

Position wind deflector with rubber stops under roof outer skin.
