54 12 138 Removing and installing/replacing rain gutter for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass slide/tilt sunroof lid

NOTE: If activating the function when removed:

It is essential to ensure that the slide of rain gutter (1) is situated ahead of connecting element (2).
If the slide of rain gutter (1) is situated below the connecting element, this will result in a collision and damage.

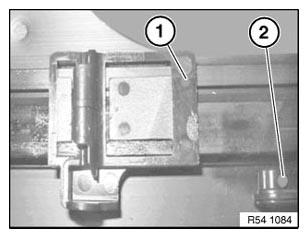

Fig 1: Identifying Connecting Element And Rain Gutter

Courtesy of BMW OF NORTH AMERICA, INC.

Lever connecting element (2) on left and right out of rain gutter linkage (1).

Installation:

Linkage must be felt to snap into place in connecting element.

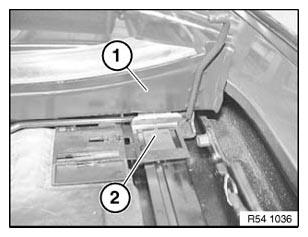

Fig 2: Removing Connecting Element On Rain Gutter Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip linkage of rain gutter (1) on left and right out of connecting element slide (2) towards rear.

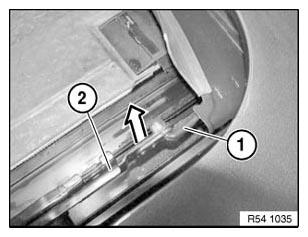

Fig 3: Identifying Rain Gutter And Element Slide

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carry out function check only with rain gutter fitted (risk of damage).
