52 26 411 Replacing left backrest cover for rear seat

Special tools required:

• 52 0 050

See SEATS - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove left backrest cover
• Remove guide sleeves
• Remove ski bag with casing

Release screw (1).

Tightening torque 52 26 04AZ  , see 52 26 REAR SEATS (THROUGH-LOADING SYSTEM) .

Remove outer mount (2).

Fig 1: Identifying Outer Mount With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out backrest cover all round with plastic wedge or screwdriver.

Fig 2: Levering Out Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever cover with trim wires (1) out of metal claws (2) all round from ski bag opening.

Remove backrest cover with padding from carrier section.

Fig 3: Identifying Trim Wires And Metal Claws

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

• Release all retainers in marked area
• Remove cover from padding
• Remove remaining retainers from cover and padding

Installation:

Insert new retainers with special tool 52 0 050  .

In so doing, enclose wire in padding and trim wire of cover.

Fig 4: Identifying Retainers In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Only when replacing seat cover for E90 with build date up to 03/06:

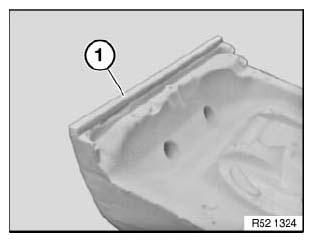

Pull liner off foam strip (1).

Stick on foam strip flush with top edge of padding.

Short protruding foam strip.

Fig 5: Identifying Foam Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Remove all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets

Fig 6: Identifying Trim Wires On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
