51 12 157 Replacing rear bumper trim

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim

Remove cover cap (1) for tow lug.

Remove rear trim grille (2).

Version with PDC:

Remove all ultrasonic transducers (3). See 66 20 534 REMOVING AND INSTALLING/REPLACING REAR LEFT ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) .

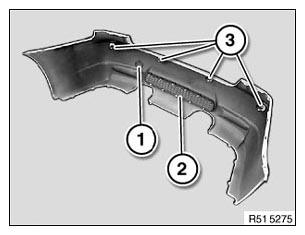

Fig 1: Identifying Cover Cap, Rear Trim Grille And Ultrasonic Transducers

Courtesy of BMW OF NORTH AMERICA, INC.
