51 12 156 Removing and installing rear bumper trim

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left/right rear light . See 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (IN SIDE PANEL) .

Lever out cover (1) and release screw underneath.

Fig 1: Identifying Cover

G04752460

Courtesy of BMW OF NORTH AMERICA, INC.

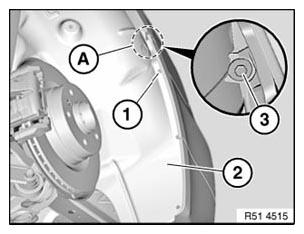

Release screw (1) on left/right.

Bend wheel arch trim (2) in area (A) to one side and release screw (3) on left/right.

Fig 2: Identifying Wheel Arch Trim And Screw

G06202378

Courtesy of BMW OF NORTH AMERICA, INC.

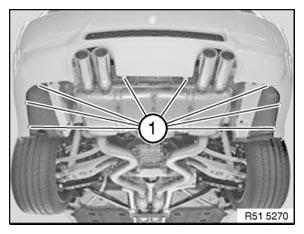

Release screws (1).

Fig 3: Identifying Screws

G06180237

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Do not detach bumper trim (1) at sides
The following work must be carried out with a second person assisting:

Pull bumper trim (1) towards rear and release from catches (2).

Fig 4: Identifying Bumper Trim And Catches

G04752463

Courtesy of BMW OF NORTH AMERICA, INC.

Press down catch (2).

Remove bumper trim (1) towards rear with aid of a 2nd person.

If necessary, disconnect plug connection on ultrasonic transducers.

Fig 5: Identifying Bumper Trim And Catch

G04752464

Courtesy of BMW OF NORTH AMERICA, INC.
