41 62 000 Rear Lid Removal And Installation (Convertible)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 450
54 0 180

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove trim from tail panel . See 51 46 050 REMOVING AND INSTALLING/REPLACING TOP TRIM ON REAR APRON .
Remove both gas-filled struts . See 51 24 300 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT GAS STRUT FOR REAR LID .

Unlock plug connections (1) without locking bar.

Fig 1: Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

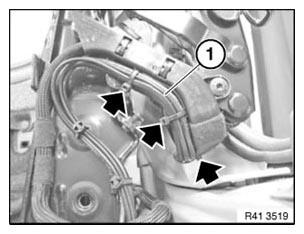

Cut through cable straps.

Fig 2: Cable Straps

Courtesy of BMW OF NORTH AMERICA, INC.

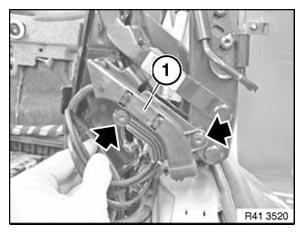

Release screws and remove cable duct (1).

Fig 3: Screws And Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Tightening torque 19 Nm.

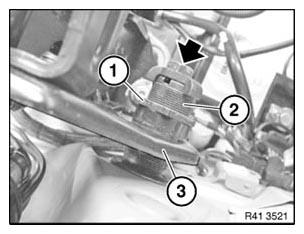

Slacken hexagon nut (1).

Twist out barrel screw (2) until wiring harness can be removed between body and frame (3).

Installation:

Bring barrel screw into contact with special tool 54 0 180 in conjunction with special tool 00 9 450.

Tightening torque 20 cNm (20 cNm = 0.2 Nm)

Fig 4: Hexagon Nut And Barrel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Release bolts (1).

Tightening torque 41 62 1AZ, see 62 REAR LID .

Remove rear lid.

Installation:

Install rear lid at screw locations on hinge.
This dispenses with the need for adjustment after installation.

If necessary, adjust rear lid .
