33 41 000 Replacing drive flange on left or right rear axle shaft (on 2-flow exhaust system)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 33 2 116
- 33 2 160
- 33 2 201
- 33 4 200
See REAR AXLE - SPECIAL TOOLS .
Necessary preliminary tasks:
- Remove output shaft
- Remove brake disk . See 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISCS .
- Remove pulse generator See 34 52 535 REPLACING A REAR PULSE GENERATOR .
IMPORTANT:
Check sensor head and line from pulse generator prior to installation for external damage, replacing if necessary.

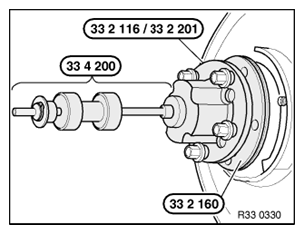

Force drive flange with special tools 33 2 116 / 33 2 201 , 33 2 160 , 33 4 200 and 5 wheel bolts out of wheel bearing.
NOTE:
Rounded inside edge of special tool 33 2 160
must point to drive flange.
IMPORTANT:
The wheel bearing is destroyed when the drive flange is removed and cannot be reused!
Replace wheel bearing.
Installation:
Install output shaft .
Oil drive flange lightly and attach to splines of output shaft.
Draw drive flange into wheel bearing.
After installation:
- Adjust handbrake . See 34 10 014 ADJUSTING HANDBRAKE .
