33 41 151 Replacing wheel bearing on left or right rear axle shaft (on 2-flow exhaust system)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 3 261
33 3 262
33 3 263
33 3 264
33 3 265

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove drive flange of rear axle shaft

Press retaining ring (1) together using pliers and remove.

Installation:

Install retaining ring (1).

Check seating of retaining ring (1), correct if necessary.

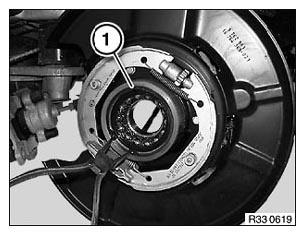

Fig 1: Identifying Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out wheel bearing with special tools 33 3 261 , 33 3 263 and 33 3 262 .

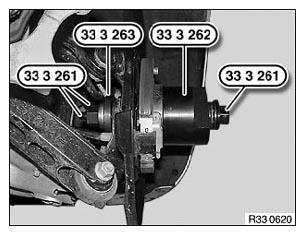

Fig 2: Removing Wheel Bearing With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not reuse old wheel bearing!
Black-dyed multipole seal (1) must point to center of vehicle!

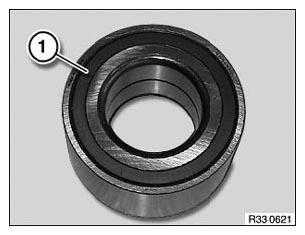

Fig 3: Identifying Black-Dyed Multipole Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check installation position of wheel bearing (1), correct if necessary.

Draw in wheel bearing (1) with special tools 33 3 261 , 33 3 265 and 33 3 264 .

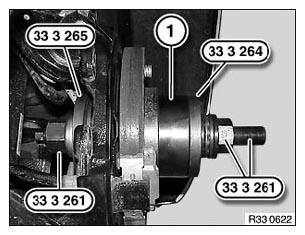

Fig 4: Installing Wheel Bearing With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Adjust handbrake . See 34 10 014 ADJUSTING HANDBRAKE .
