33 32 091 Replacing a guide arm

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the guide arm is detached from the rear axle carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check .

Necessary preliminary tasks:

Remove rear wheel . See WHEEL AND TIRES - REPAIR .
Remove both stabilizer links from stabilizer and turn stabilizer in upward direction

Release screw.

Installation:

If necessary, raise wheel carrier in area of brake caliper by hand.

Replace screw.

Tightening torque 33 32 4AZ . See 33 32 CONTROL ARMS AND STRUTS .

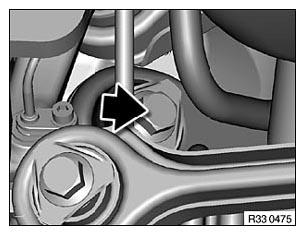

Fig 1: Locating Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure during installation that in the connection area to the wheel carrier the tapered end of the bearing bushing (of the rubber mount) points in the direction of the wheel carrier.

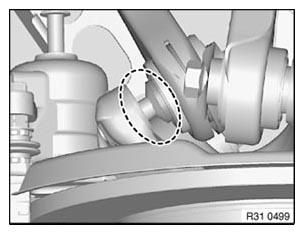

Fig 2: Identifying Connection Area Of Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On the M3 a ball joint is fitted in the guide arm.

Slacken nut (1).

Unscrew bolt towards rear and remove guide arm (2).

Installation:

Bolt head must point to rear.

Replace self-locking nut.

Tightening torque 33 32 3AZ . See 33 32 CONTROL ARMS AND STRUTS .

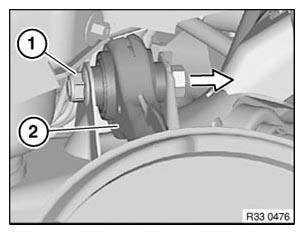

Fig 3: Identifying Guide Arm And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check
