33 55 040 Replacing stabilizer links for stabilizer
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 31 1 140
See FRONT AXLE - SPECIAL TOOLS .

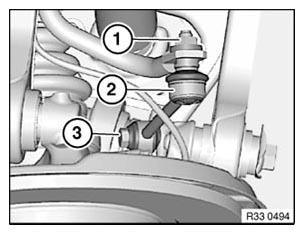

Release nut (1), gripping with special tool 31 1 140 in the process.
Installation:
Replace self-locking nut.
Tightening torque 33 55 2AZ . See 33 55 STABILIZER BAR .
Release screw (3).
Tightening torque 33 55 3AZ . See 33 55 STABILIZER BAR .
Remove stabilizer link (2) towards top.
