33 32 035 Replacing a rubber mount for trailing arm in rear axle carrier

Special tools required:

• 33 4 450
• 33 4 451
• 33 4 452
• 33 4 453
• 33 4 454
• 33 4 465
• 33 4 466
• 33 4 471
• 33 4 472
• 33 4 474
• 33 4 475

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove trailing arm from rear axle carrier

Removing rubber mount:

Mark installation position of rubber mount by way of slot to rear axle carrier.

Pull out rubber mount with special tools 33 4 472  , 33 4 474  , 33 4 475  , 33 4 466  and 33 4 465  .

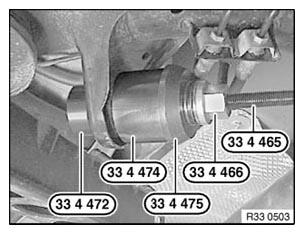

Fig 1: Removing Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount:

If necessary, release knurled screws 33 4 452  and pull off mounting 33 4 455 with spring steel 33 4 456.

Insert rubber mount with spray-on points facing upwards in special tools 33 4 451  , 33 4 452  , 33 4 454  , 33 4 453  and pull together.

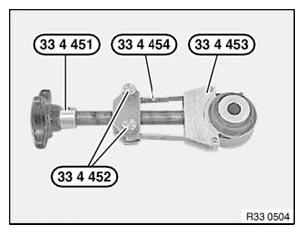

Fig 2: Inserting Rubber Mount With Spray-On Points Facing Upwards In Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

All models except M3:

Align rubber mount by way of slot (1) at an angle to rear axle carrier.

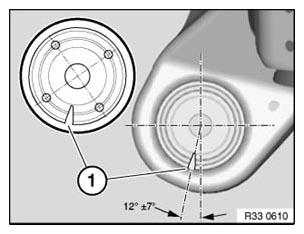

Fig 3: Identifying Rubber Mount Slot

Courtesy of BMW OF NORTH AMERICA, INC.

M3:

Align rubber mount by way of slot (1) at an angle to rear axle carrier.

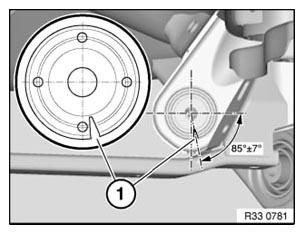

Fig 4: Identifying Rubber Mount Slot

Courtesy of BMW OF NORTH AMERICA, INC.

Align rubber mount by way of slot to marking on rear axle carrier.

Draw rubber mount a little into rear axle carrier with special tools 33 4 471  , 33 4 474  , 33 4 475  , 33 4 466  and 33 4 465  .

Remove special tool 33 4 450  .

Apply a thin coating of Loctite 638 to new rubber mount.

Draw in rubber mount as far as it will go.

Fig 5: Installing Rubber Mount With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Carry out wheel/ chassis alignment check
