33 32 031 Replacing rubber mount for trailing arm in wheel carrier

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 450
33 4 451
33 4 452
33 4 453
33 4 454
33 4 465
33 4 466
33 4 472
33 4 473
33 4 474
33 4 475

See REAR AXLE - SPECIAL TOOLS .

NOTE: E90, E91 from 09/2008:
For driving dynamic reasons, both rubber mounts must be replaced on first replacement. After replacing the rubber mounts, mark wheel carriers with punch marks. If the punch marks are provided, the rubber mounts can be changed again individually.

Necessary preliminary tasks:

Remove trailing arm from wheel carrier

Removing rubber mount:

Pull out rubber mount with special tools 33 4 465 , 33 4 466 , 33 4 475 , 33 4 474 and 33 4 472 .

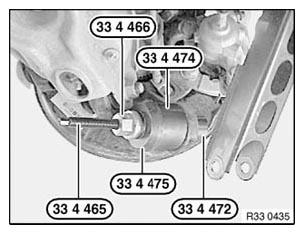

Fig 1: Removing Rubber Mount With Special Tools

G06201471

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount:

Insert rubber mount with spray-on points facing upwards in special tools 33 4 451 , 33 4 452 , 33 4 454 , 33 4 453 and pull together.

Insert rubber mount in special tool 33 4 473 .

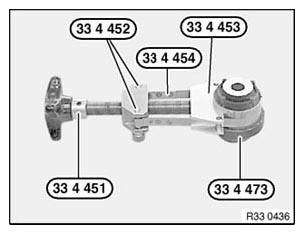

Fig 2: Inserting Rubber Mount In Special Tool

G06201472

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Spray-on points of rubber mount must point to rear!

Align rubber mount by way of slot (1) at an angle to wheel carrier.

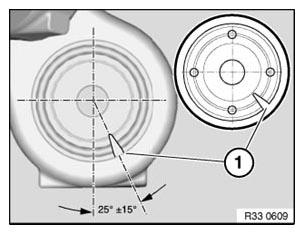

Fig 3: Identifying Rubber Mount Slot

G06201473

Courtesy of BMW OF NORTH AMERICA, INC.

Draw rubber mount with special tools 33 4 465 , 33 4 466 , 33 4 475 , 33 4 474 and 33 4 473 a little into wheel carrier.

Remove special tool 33 4 450 and draw in rubber mount as far as it will go.

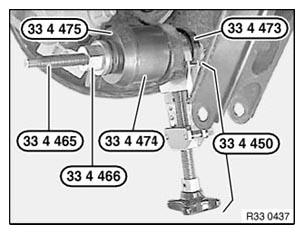

Fig 4: Installing Rubber Mount With Special Tool

G06201474

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out wheel/ chassis alignment check
