22 11 110 Replacing left engine support arm (S65)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left exhaust manifold . See 18 40 010 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST MANIFOLD (S65) .
Observe safety instructions on raising the vehicle. See 00 ... ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

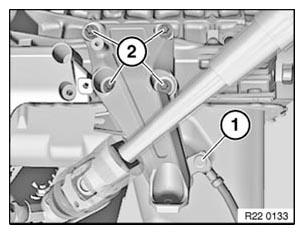

Release screws (2).
Remove engine support arm.
Tightening torque 22 11 3AZ , see 22 11 ENGINE SUSPENSION .
NOTE:
Illustration similar
