11 14 005 Replacing front crankshaft seal (S65)

Special tools required:

• 11 2 386
• 11 5 331
• 11 5 332
• 11 5 333
• 11 6 360
• 11 7 231

See ENGINE - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove fan cowl  with electric fan. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (S65) .
• Remove radiator.  See 17 11 000 REMOVING AND INSTALLING RADIATOR (N51, S65) .
• Remove vibration damper  .

Lay special tool 11 2 386  on crankshaft.

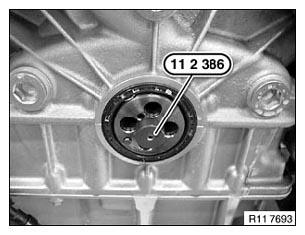

Fig 1: Identifying Special Tool (11 2 386) On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 6 360  to 80 Nm into radial seal.

Release radial seal from housing.

Repeat the operation several times if necessary.

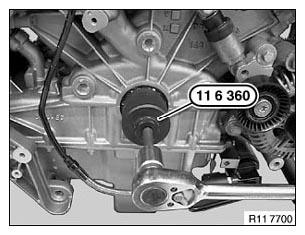

Fig 2: Screwing Special Tool (11 6 360) Into Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remnants of sealant from sealant outlet (1) on left and right.

Apply Drei Bond sealant to sealant outlet (1) on left and right.

Fig 3: Identifying Sealant Outlet On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 5 331  with bolts (1).

Fig 4: Securing Special Tool (11 5 331) With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Push special tool 11 7 231  onto special tool 11 5 331  in direction of arrow.

Fig 5: Pushing Special Tool (11 7 231) Onto Special Tool (11 5 331)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove support ring from shaft seal.

Push shaft seal (1) uniformly by way of fitting aid 11 7 231  onto special tool 11 5 331  .

Position shaft seal approx. 5 mm before crankcase.

Remove special tool 11 7 231  .

Fig 6: Pushing Shaft Seal (11 7 231) Onto Special Tool (11 5 331)

Courtesy of BMW OF NORTH AMERICA, INC.

Press in shaft seal (1) with special tools 11 5 332  and 11 5 333  .

Fig 7: Pressing Shaft Seal With Special Tools (11 5 332) And (11 5 333)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Setting time of shaft seal approx. 1 hour.

Correct  engine oil level if necessary.
