17 11 000 Removing and installing radiator (N51, S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

IMPORTANT: Wear protective goggles and gloves.

Necessary preliminary tasks:

Follow instructions for working on cooling system
Remove expansion rivets (1). Release screws (2). Remove intake duct (3 and 4). Remove intake duct .

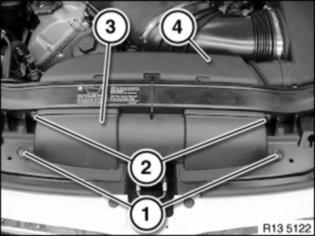

Fig 1: Removing Intake Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake filter housing . See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (S65) .
Remove fan cowl
Draining coolant
Unlock coolant hoses and detach

If fitted:

Remove heat exchanger for automatic transmission fluid

Automatic only:

Release bolt and detach hose (1).

Fig 2: Identifying Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Carefully feed out radiator (1) towards top and remove.

NOTE: Illustration shows N54.

Fig 3: Removing Radiator
