11 23 010 Removing and installing/replacing vibration damper (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 120
11 0 280
11 9 260
11 9 263

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

See ENGINE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove fan cowl with electric fan. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (S65) .
Remove A/C compressor drive belt .
Remove alternator drive belt .

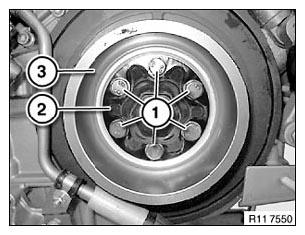

Release screws (1).

Remove cover (2) with belt pulley (3).

Fig 1: Identifying Screws, Cover And Belt Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine or transmission removed.

Secure special tool 11 9 260 to flywheel (1).

Screw in special tool 11 9 263 with bolt (2) on crankcase.

Fig 2: Identifying Flywheel, Special Tool (11 9 260) And (11 9 263)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove vibration damper (1).

Tightening torque: 11 23 1AZ . See VIBRATION DAMPER .

Fig 3: Identifying Vibration Damper And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine or transmission installed.

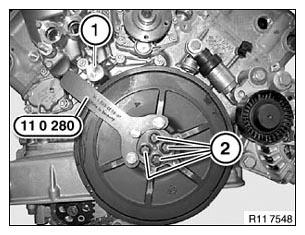

Attach special tool 11 0 280 to vibration damper.

Support special tool 11 0 280 on holder (1).

Release all anti-fatigue bolts (2).

Installation:

Replace stress bolts.

Fig 4: Identifying Special Tool (11 0 280) On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

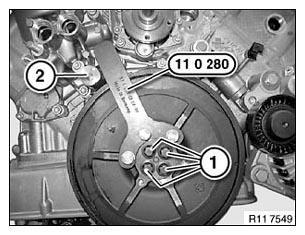

Support special tool 11 0 280 on holder (2).

Tighten anti-fatigue bolts (1) with special tool 00 9 120 .

Tightening torque: 11 23 1AZ . See VIBRATION DAMPER .

Fig 5: Tightening Anti-Fatigue Bolts With Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
