11 00 050 Removing and installing engine (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 000
13 5 280
17 2 050

See ENGINE - SPECIAL TOOLS .

See FUEL SYSTEM - SPECIAL TOOLS .

See COOLING SYSTEM - SPECIAL TOOLS .

Necessary preliminary tasks:

Engine hood/bonnet in assembly position.
Drain engine oil.
Remove suction filter housing. See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (S65) .
Remove intake air manifold .
Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION and 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove transmission (Important observe repair instructions). See 23 00 018 REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) (S65) .
Remove electric fan. See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (S65) .
Remove radiator with coolant hoses. See 17 11 000 REMOVING AND INSTALLING RADIATOR (N51, S65) .
Drain coolant.
Remove expansion tank with coolant hose. See 17 11 100 REMOVING AND INSTALLING/REPLACING COOLANT EXPANSION TANK (S65) .
Draw off A/C system.
Remove all lines from A/C compressor. See 64 53 660 REPLACING LINE FROM CONDENSER TO EVAPORATOR (S65) , 64 53 670 REPLACING LINE FROM COMPRESSOR TO EVAPORATOR (S85) and 64 53 642 REPLACING LINE FROM COMPRESSOR TO CONDENSER (S65) .
Remove secondary-air pump .
Detach B+ lead in engine compartment.
Detach vacuum hose from brake booster. See 34 33 071 REPLACING VACUUM HOSE FOR BRAKE BOOSTER (ON BRAKE BOOSTER) .
Release suspension cross-brace in engine compartment. See 51 71 345 REMOVING AND INSTALLING/REPLACING LEFT (OR RIGHT) SUSPENSION CROSS-BRACE .
Release grounding strap on engine support arm.

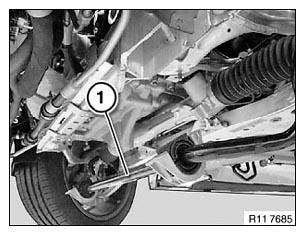

Release stabilizer (1) on front axle carrier at front.

Allow stabilizer (1) to hang loose.

Fig 1: Identifying Stabilizer On Front Axle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete steering spindle. See 32 31 070 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING SPINDLE .

Remove heat shield.

Release screws (1).

Fig 2: Identifying Steering Spindle Extension And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach steering spindle extension (2).

Tightening torque: 32 31 1AZ . See 32 31 STEERING COLUMN .

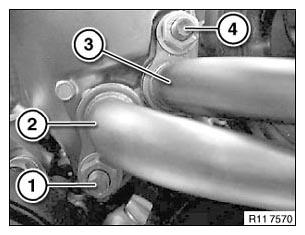

Release nuts (1 and 4).

Detach oil lines (2 and 3).

Recycling:

Have a cloth ready to catch a residual amount of engine oil.

Fig 3: Identifying Oil Lines And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

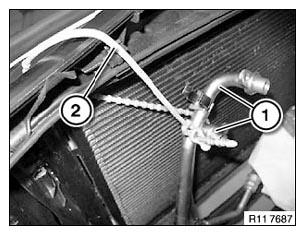

Secure oil lines (1) with a cable tie (2) to front panel.

Fig 4: Securing Oil Lines With Cable Tie To Front Panel

Courtesy of BMW OF NORTH AMERICA, INC.

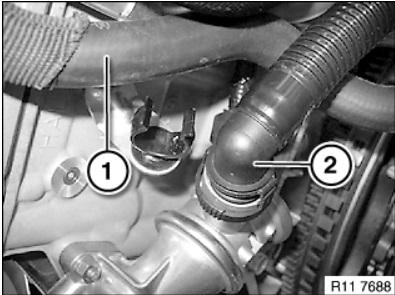

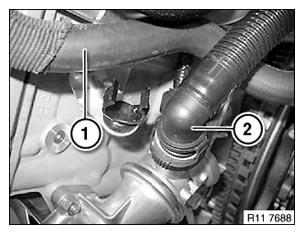

Unclip heater hose (1) and set down with heating valve on engine.

Disconnect both hoses (2) from secondary-air valves.

Fig 5: Identifying Heater Hose And Secondary-Air Valves Hose

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to steering gear and oil sump.

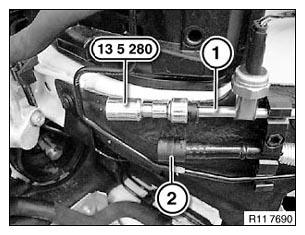

Disconnect fuel line (1) and lock with special tool 13 5 280.

Disconnect flushing line (2).

Fig 6: Identifying Fuel Line, Flushing Line And Special Tool (13 5 280)

Courtesy of BMW OF NORTH AMERICA, INC.

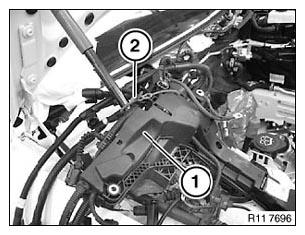

Unfasten engine wiring harness (1) on engine completely.

Secure engine wiring harness (1) with a cable tie (2) to engine hood/bonnet damper.

Fig 7: Identifying Engine Wiring Harness And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

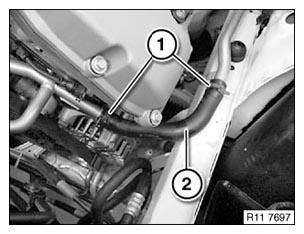

Release both clamps (1) with special tool 17 2 050.

Remove coolant hose (2).

Fig 8: Identifying Clamp And Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not release any hydraulic lines on the power steering pump.

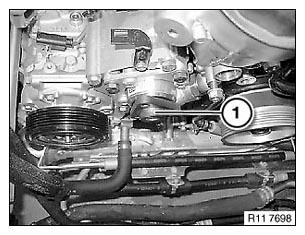

Release power steering pump (1) on engine block.

Set down power steering pump (1) on front axle carrier.

Fig 9: Identifying Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew left and right engine mounts. See ENGINE AND GEARBOX SUSPENSION - REPAIR .

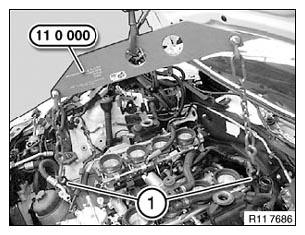

Secure special tool 11 0 000 to suspension eyes (1).

Remove engine with 2 persons.

Fig 10: Identifying Special Tool (11 0 000) And Suspension Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up coolant and vent cooling system. See 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATER LEAKS (S65) .

Pour in engine oil.

Install replacement engine .

Correct CBS data status.
