51 16 040 Removing and installing/replacing housing on left or right door mirror (M5/M6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear-view mirror on front door .
Remove cover cap from door mirror .

Release screws (1). Tightening torque 51 16 9AZ, see 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES .

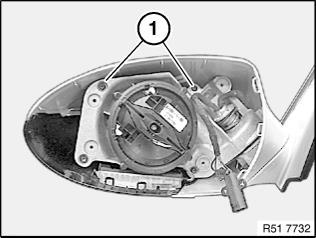

Fig 1: Release Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove foam material (1) and release screws (2) underneath. Tightening torque, see 51 16 15AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES .

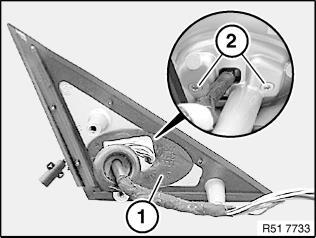

Fig 2: Remove Foam Material (1) And Release Screws (2) Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make a note of coding of plugs on cable (4).

Disconnect cable (4) from plug. Detach grommet (3) from cable (4). Detach housing (1) from retaining plate (2). Feed cable (4) through retaining plate (2). Remove housing (1) from carrier (5).

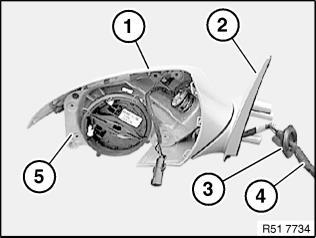

Fig 3: Remove Housing (1) From Carrier (5)
