51 16 041 Removing and installing/replacing cover cap on left or right door mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining ring on door mirror.

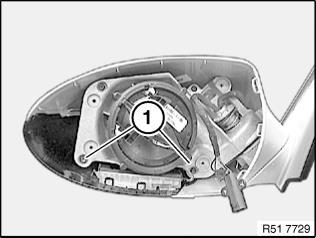

Release screws (1). Tightening torque, see 51 16 9AZ in .

Fig 1: Release Screws (1)

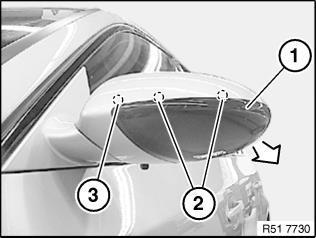

Release cover cap (1) from catches (2) and feed out in direction of arrow. Disconnect connector (3). Installation: Make sure wiring of door mirror light is correctly routed.

Fig 2: Release Cover Cap (1) From Catches (2) And Feed Out In Direction Of Arrow

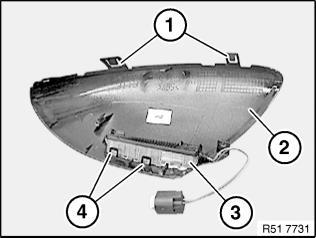

Installation: Catches (1) on cover cap (2) must not be damaged. 3-Light, 4-Catches.

Fig 3: Catches (1) On Cover Cap (2) Must Not Be Damaged
