33 41 ... Detaching Wheel Bearing Inner Race From Drive Flange (Drive Flange Removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE:

Detach wheel bearing inner race with special tool 33 4 400 through groove in wheel bearing inner race.

Position special tool 33 1 307 on drive flange.

Select one of the following special tools using the wheel bearing inner race and insert into special tool 33 4 401.

33 4 405 for dia. 45 - 51 mm

33 4 406 for dia. 50 - 55 mm

33 4 407 for dia. 55 - 61 mm

Screw in special tool 33 4 402 until tapered attachment of spindle comes into contact with special tool 33 4 401.

Position special tool 33 4 401 with corresponding insert on groove of wheel bearing inner race.

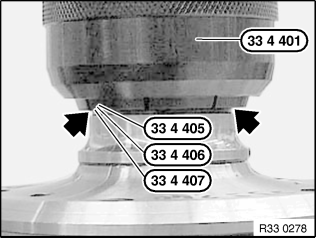

Fig 1: Positioning Special Tool 33 4 401 With Corresponding Insert On Groove Of Wheel Bearing Inner Race

Courtesy of BMW OF NORTH AMERICA, INC.

Compress special tool 33 4 401 with wrenches 33 4 403 and 33 4 404 until special tool can still just be turned in groove.

Detach wheel bearing inner race by turning special tool 33 4 402.

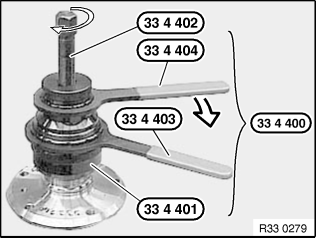

Fig 2: Compressing Special Tool 33 4 401 With Wrenches 33 4 403 And 33 4 404 Until Special Tool Can Still Just Be Turned In Groove

Courtesy of BMW OF NORTH AMERICA, INC.
