51 32 211 Replacing front left or right rubber guide for left or right door window

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Mirror
Remove Trim On Window Frame of front door

Remove Sound Insulation (1).

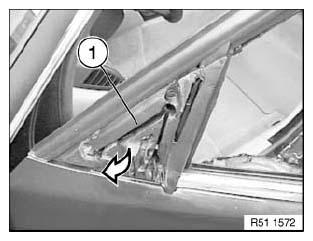

Fig 1: Identifying Door Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) in direction of arrow from front door (2).

Installation:

Moisten rubber guide (2) with water before fitting.

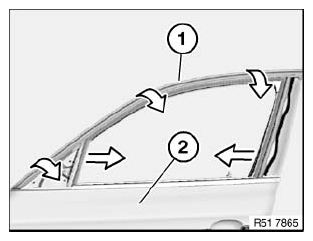

Fig 2: Identifying Rubber Guide And Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber guide (1) must not be damaged in corners (2).

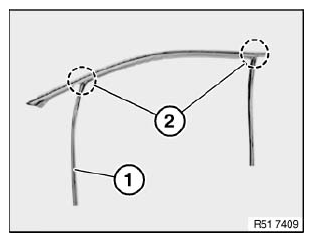

Fig 3: Identifying Guide And Corners

Courtesy of BMW OF NORTH AMERICA, INC.
