51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Front Door Trim Panel
Lever out Cover On Door Window Frame at front

IMPORTANT: Secure door mirror against falling down.

Disconnect plug connection (1).

Release screws (2).

For tightening torque refer to 51 16 1AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES .

Replacement:

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

For tightening torque refer to 51 16 1AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES .

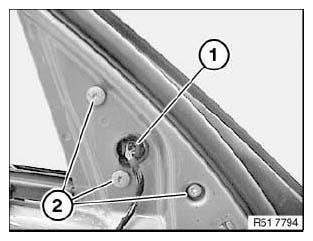

Fig 1: Identifying Front Door Mirror Plug Connection And Screws

G04728204

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mirror (1) outwards.

Installation:

Check function.

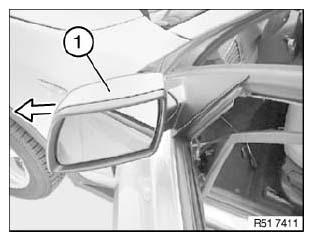

Fig 2: Identifying Front Door Mirror

G04728205

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Acoustic insulation (1) must not be damaged.

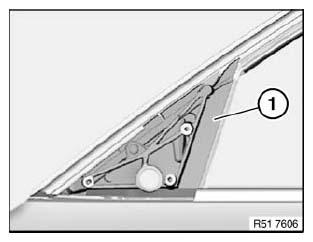

Fig 3: Identifying Front Door Acoustic Insulation

G04728206

Courtesy of BMW OF NORTH AMERICA, INC.
