51 32 420 Removing and installing/replacing trim on front door window frame, left or right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

E83 only:

Remove window cavity cover strip on outside of front door

Partially detach rubber window seal (1) at rear.

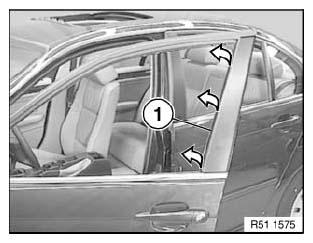

Fig 1: Identifying Rubber Window Seal

G04728449

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove finisher (2) and press approx. 3 mm towards rear.

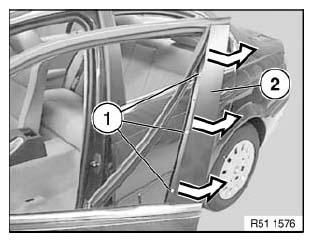

Fig 2: Identifying Finisher And Screws

G04728450

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (1) towards top.

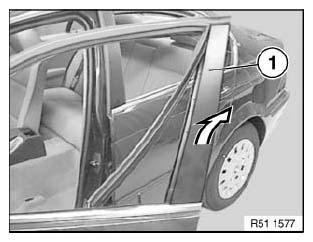

Fig 3: Identifying Front Door Window Trim

G04728451

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

Plastic nuts
Sound insulation
Seal

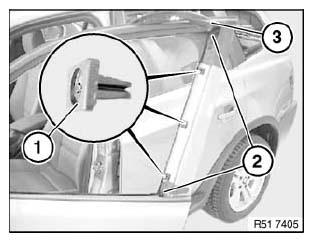

Fig 4: Identifying Plastic Nuts, Sound Insulation And Seal
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check trim (1) for damage, replace if necessary.

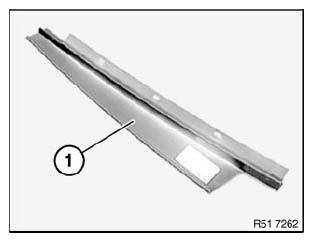

Fig 5: Identifying Window Trim

G04728453

Courtesy of BMW OF NORTH AMERICA, INC.
