51 32 170 Removing and installing / replacing door window glass, front left or right

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing door lock, it is not necessary to remove window cavity cover strips or seals.

Necessary preliminary tasks:

Open door window to 105 mm.
Remove Sound Insulation In Front Door

E87 only:

Remove Outer Window Cavity Cover Strip

E90 only:

Remove Inner Window Cavity Seal

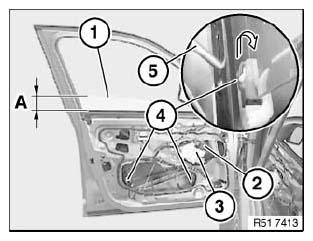

Door window glass (1) must be opened to dimension (A).

A = approx. 105 mm

IMPORTANT: Disconnect plug connection (2) from power window motor (3) (risk of trapping).

Lever out catches (4) with screwdriver (5) in direction of arrow.

Fig 1: Identifying Glass, Catches, Screwdriver, Window Motor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (4) must be correctly clipped into place.

Carry out function check on power window unit and anti-trapping protection.

If necessary, Normalize power window unit.

Installation:

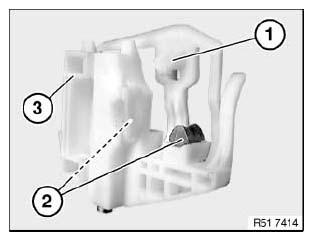

Following parts of window guide (3) must not be damaged or missing:

Catch
Buffer stop

Fig 2: Identifying Window Guide, Catch And Buffer Stop
Courtesy of BMW OF NORTH AMERICA, INC.

When removing door lock:

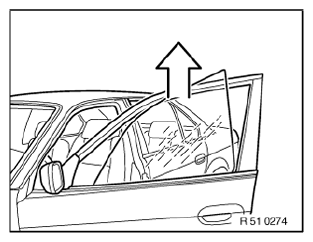

Slide door window glass upwards and secure in door window frame with adhesive tapes or plastic wedge.

When removing door window glass:

Turn door window glass and lift out towards rear/top.

Fig 3: Sliding Door Window Glass Upwards

Courtesy of BMW OF NORTH AMERICA, INC.
