51 11 185 Removing and installing/replacing side trim grille in bumper trim (M Technic aerodynamic kit)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Front Bumper Trim
Remove Fog Lamps

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1).

Release catches (2) and remove carrier (3) towards front.

Installation:

If necessary, replace faulty metal nuts.

All sheet metal nuts must be correctly fitted.

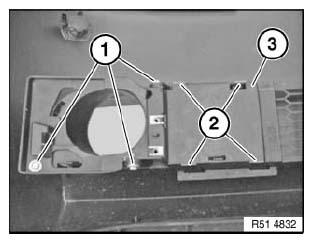

Fig 1: Identifying Catches And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on trim grille (3).

Remove trim grille (3).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

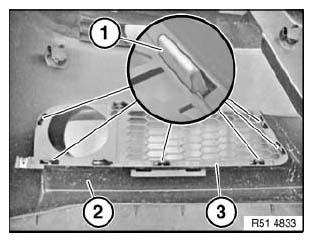

Fig 2: Identifying Bumper Trim, Catches And Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.
