65 12 072 Removing and installing (replacing) amplifier (Top Hi-Fi system)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

NOTE: Comply with notes and instructions on Handling Optical Waveguides .

Necessary preliminary tasks:

Disconnect Negative Battery Cable
Vehicles with CD changer or video module only:
- Remove Luggage Compartment Trim on left.
- Remove Video Module
- Remove CD Changer

Vehicles without CD changer or video module only:

Unclip cover (1) in direction of arrow from luggage compartment trim panel (2).

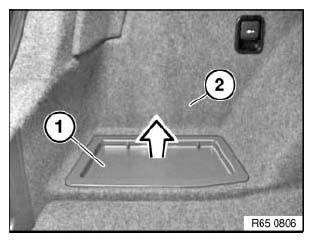

Fig 1: Identifying Cover And Luggage Compartment Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Shown with luggage compartment trim panel removed:

Unlock plug connections (2) and disconnect.

Pull out retaining plates (3) in direction of arrow.

Remove amplifier (1) from holder (4).

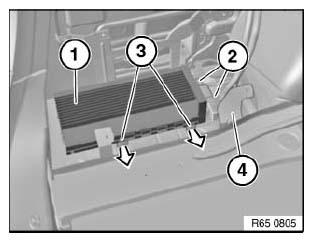

Fig 2: Identifying Plug Connections, Retaining Plates, Amplifier And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
