65 11 070 Removing and installing/replacing CD changer

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Disconnect Battery Negative Lead
Remove Luggage Compartment Trim on left.
If necessary, Remove Video Module For On-Board Monitor

NOTE: Follow instructions for Handling Optical Fibres .

Release screws (1).

Pull CD changer (2) forward and unlock and disconnect plug connections.

Remove CD changer (2) complete with holder.

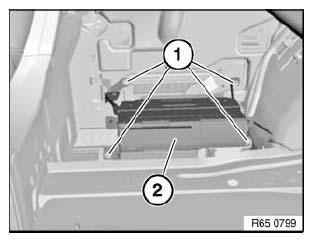

Fig 1: Identifying CD Changer And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove holder (3) from CD changer (2).

Fig 2: Identifying CD Changer, Holder And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
