65 12 070 Removing and installing/replacing amplifier

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Disconnect Battery Negative Lead
Remove luggage compartment trim on left.
If necessary, remove Video Module
If necessary, remove CD Changer

Unfasten plug connection (2) and disconnect.

Release screws (1).

Remove amplifier (3) complete with holder (4).

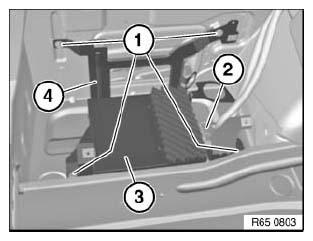

Fig 1: Identifying Amplifier, Plug Connection, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screw (2).

Unscrew nuts (4).

Remove amplifier (1) from holder (3).

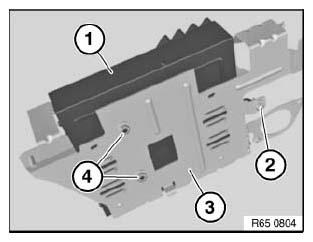

Fig 2: Identifying Amplifier, Holder, Nuts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
