51 46 050 Removing and installing/replacing finisher for top of rear apron

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Replacing left trunk wheel housing trim,

refer to 51 47 151 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL HOUSING TRIM, LEFT .

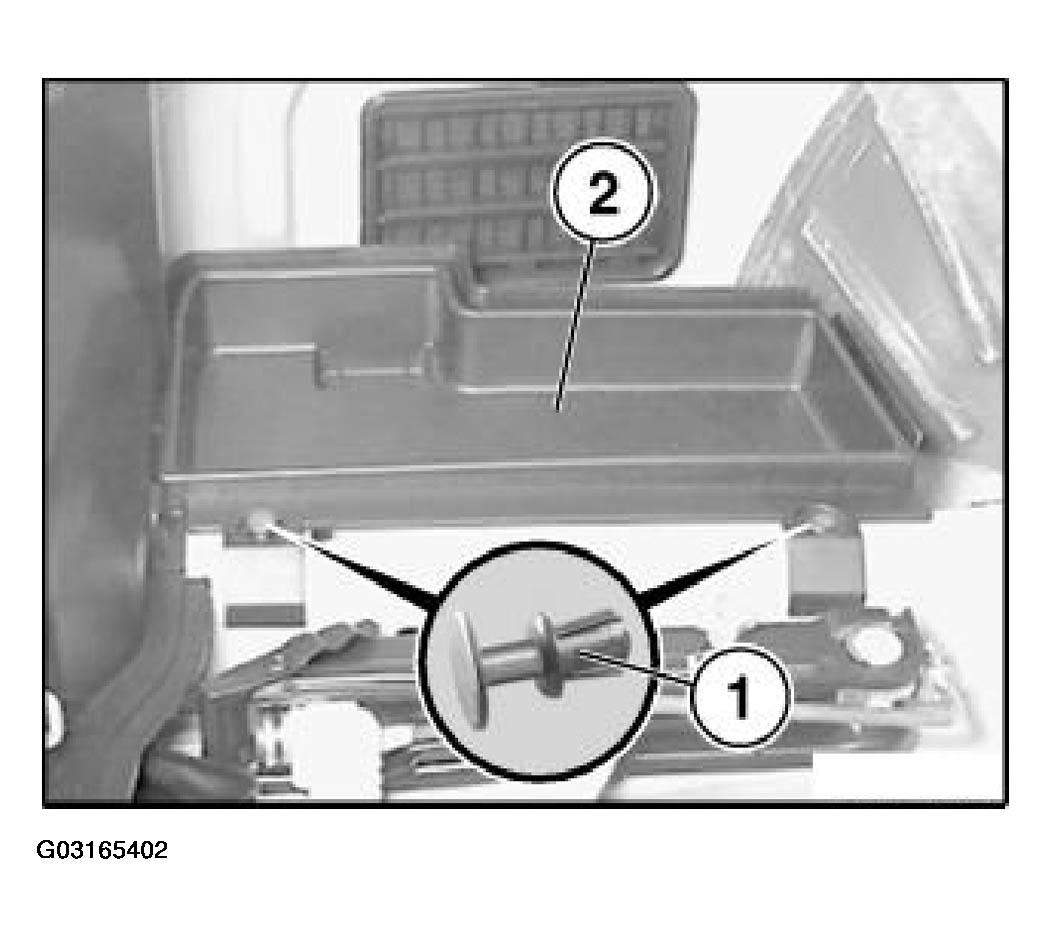

Release expansion rivets (1) and remove tray (2).

Fig 1: Removing Expansion Rivets

G03165402

Courtesy of BMW OF NORTH AMERICA, INC.

Version with battery in luggage compartment:

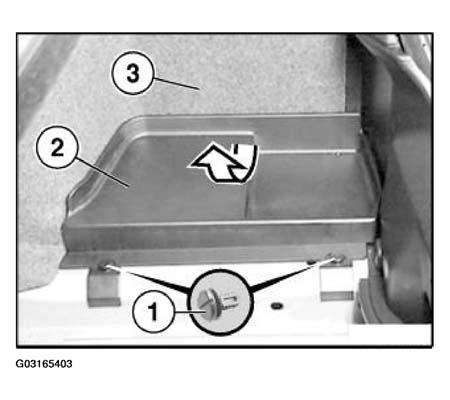

Turn rotary clip (1) through 90° and feed shelf (2) out of trunk wheel arch trim (3).

Fig 2: Removing Rotary Clip

G03165403

Courtesy of BMW OF NORTH AMERICA, INC.

Version with battery in engine compartment:

Replace right trunk wheel housing trim,

refer to 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT TRUNK WHEEL ARCH TRIM .

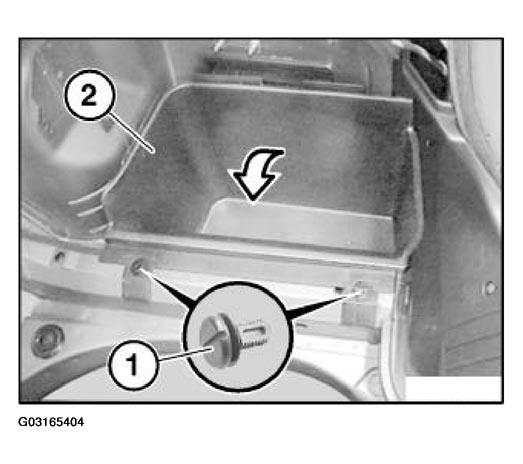

Turn rotary clip (1) through 90° and remove shelf (2).

Fig 3: Removing Shelf

G03165404

Courtesy of BMW OF NORTH AMERICA, INC.

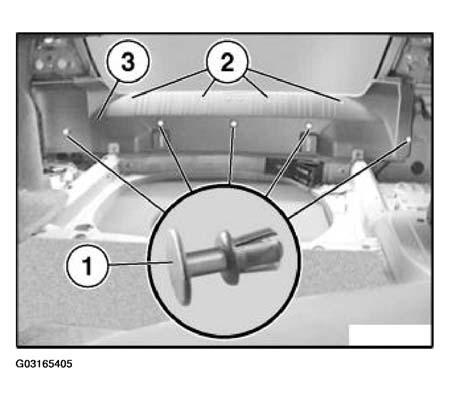

Release expansion rivets (1).

Fig 4: Removing Expansion Rivets

G03165405

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out caps (2).

Release screws and remove trim (3).

Replacement only:

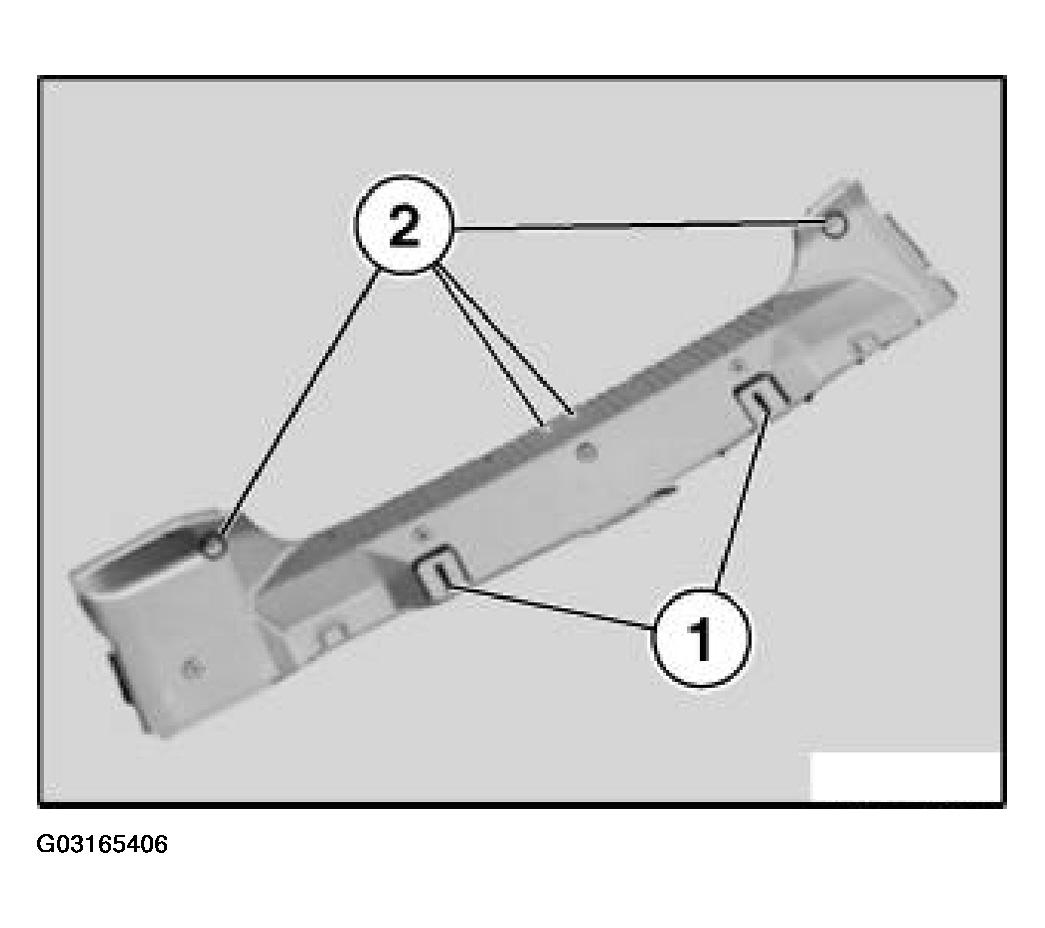

Lever out trims (1) and caps (2).

Fig 5: Levering Out Trims And Caps

G03165406

Courtesy of BMW OF NORTH AMERICA, INC.
