51 47 161 Removing and installing/replacing right trunk wheel arch trim
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove socket housing for tail light in side section,
refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (SALOON/SEDAN, TOURING) .
Version with through-load system:
Remove rest side section from rear seat backrest,
refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT/RIGHT SIDES OF BACKREST ON REAR SEAT BACKREST .

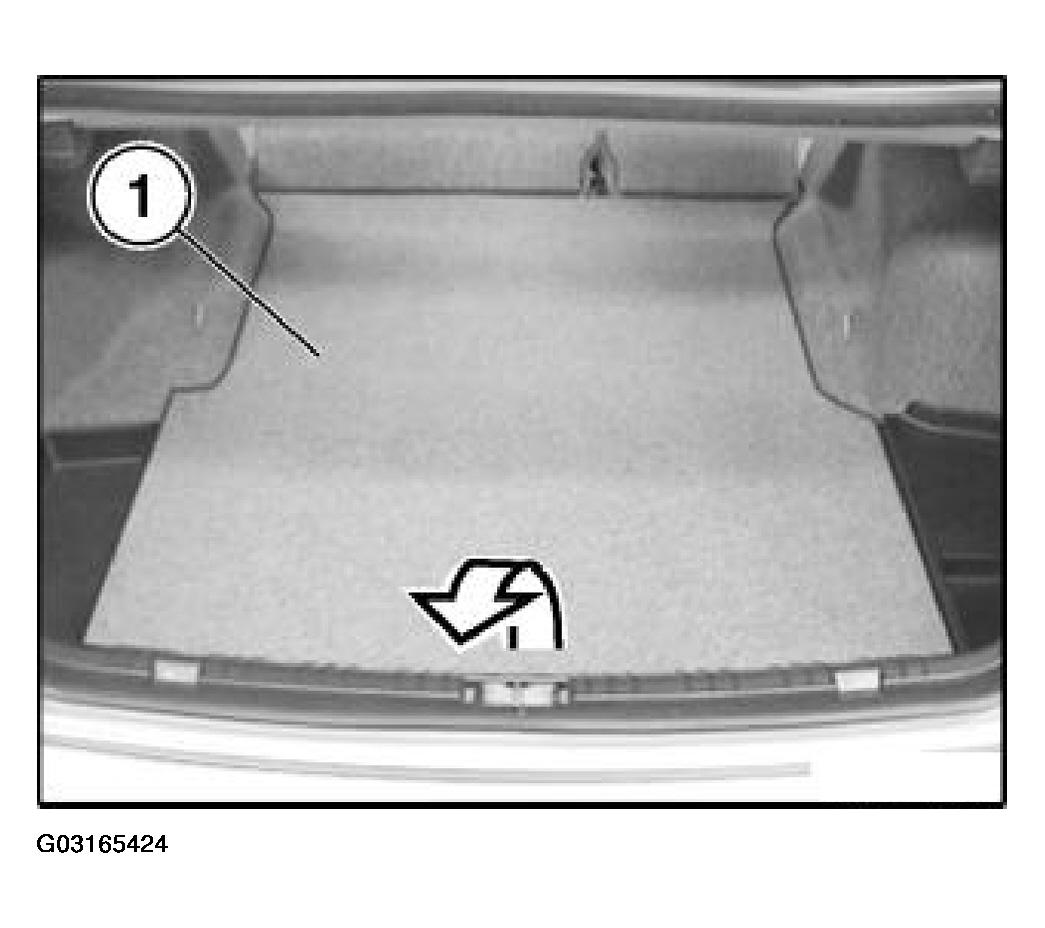

Take out luggage compartment floor trim panel (1).
Remove cover for spare wheel/jack.
Pull out emergency release mechanism for tank cap a little.

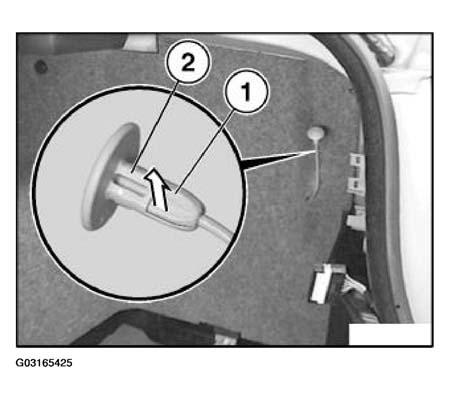

Unclip cable (1) from clip (2).

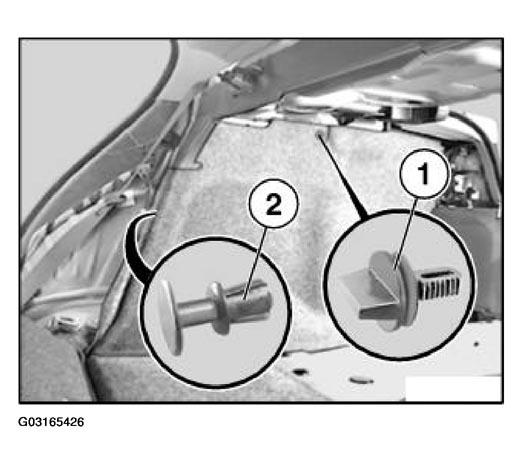

Turn rotary clip (1) through 90° and remove.
Partially release panel for trunk separating wall.

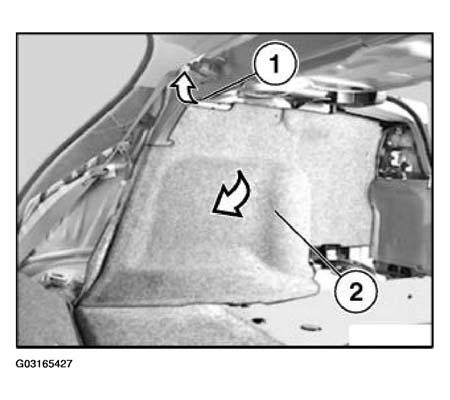

Partially lever out outer trim (1) and remove trunk wheel arch trim (2).
