51 47 151 Removing and installing/replacing trunk wheel housing trim, left

Remove socket housing for tail light in side section,

refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (SALOON/SEDAN, TOURING) .

Version with through-load system:

Remove rest side section from rear seat backrest,

refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT/RIGHT SIDES OF BACKREST ON REAR SEAT BACKREST .

Take out luggage compartment floor trim panel (1).

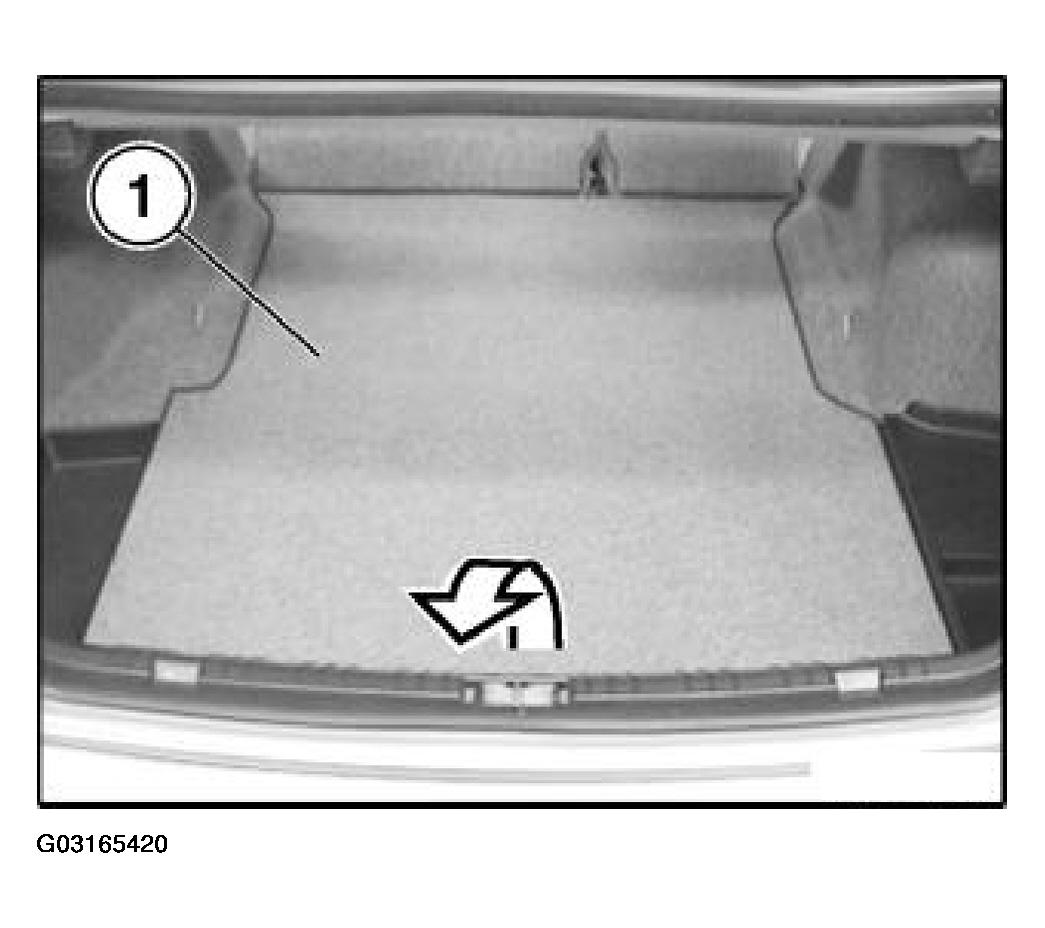

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover for spare wheel/jack.

Remove warning triangle.

Release expansion rivet (1) and remove fixture (2) for warning triangle.

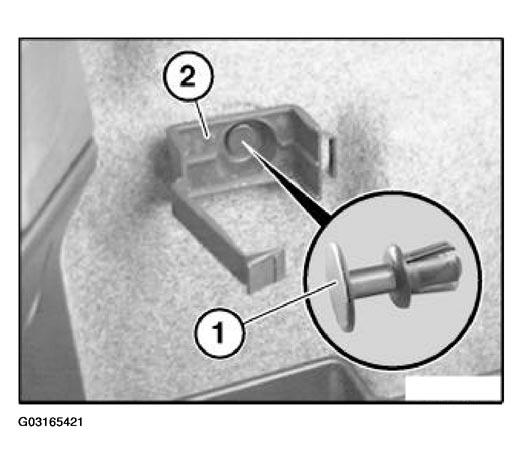

Fig 2: Removing Fixture For Warning Triangle

Courtesy of BMW OF NORTH AMERICA, INC.

Version with through-load system:

Release expansion rivet (1).

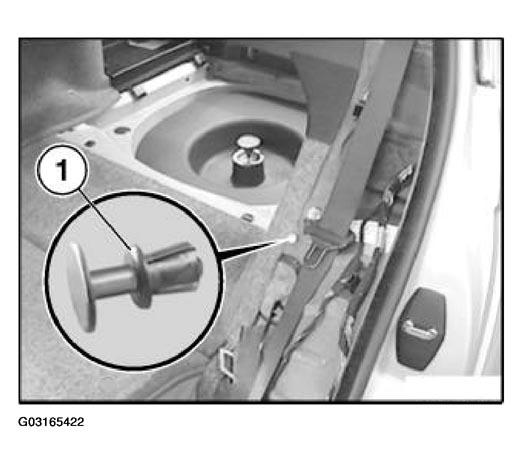

Fig 3: Removing Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Partially release panel for trunk separating wall.

Release expansion rivet (1) and remove trunk arch housing trim (2).

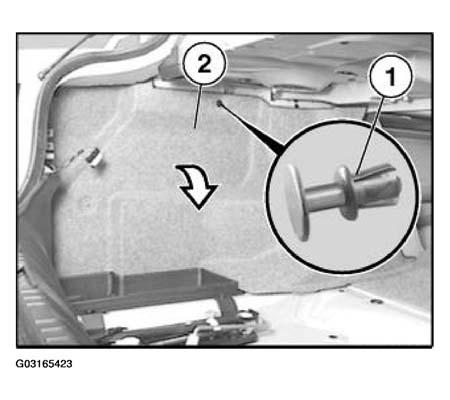

Fig 4: Removing Trunk Arch Housing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
