Remove/Install Rear Axle Camber Strut - AR35.20-P-0110S

Model 223

except code Z07 (B7 armoring on special protection version)

Shown on left side of vehicle except engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV))

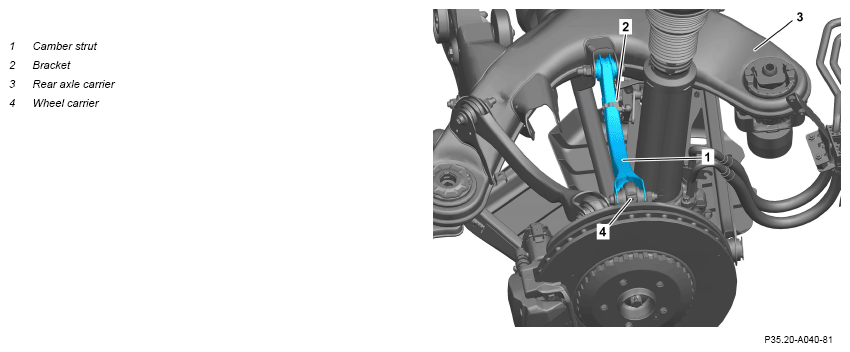

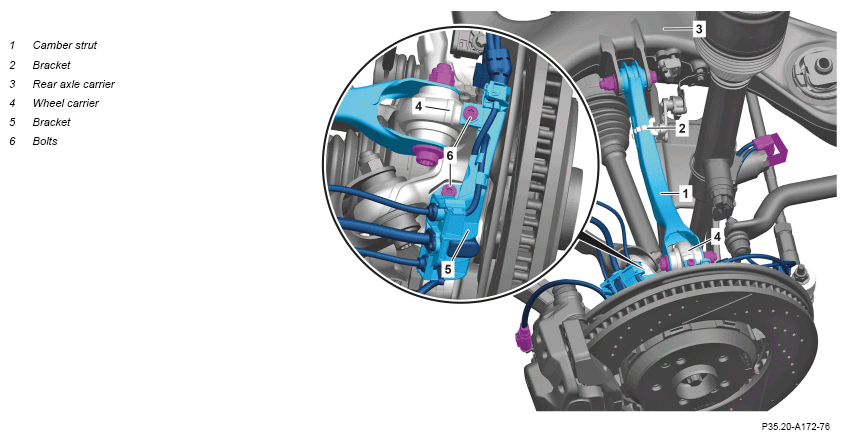

Fig 1: Rear Axle Camber Strut Components Location - Model 223 Except Code Z07 (Shown On Left Side Except Engine 177.8 With Code ME10)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version)	AH00.00-Z-0300-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove corresponding rear wheel.		AR40.10-P-1102A
2	Unclip holder (2) of level sensor linkage and place to one side.	: Check holder (2) is in correct installation position. Otherwise, the level sensor will be damaged.
3	Remove bolts (6).	Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) Screw, cable holder to wheel carrier	*BA42.30-P-1002-02M
4	Remove holder (5) from wheel carrier (4) and place to one side with electric lines attached.	Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
5	Remove camber strut (1) from wheel carrier (4).	Screw, camber strut to wheel carrier	*BA35.20-P-1002-02N
		Screwdriver bit	Fig 2
6	Remove camber strut (1) from rear axle carrier (3).	Screw/Nut camber strut to rear axle carrier	*BA35.20-P-1001-02N
		Screwdriver bit	Fig 2
	Check
7	Check camber strut (1) for condition and damage.	If there is a problem, ↓ Replace camber strut (1).
8	Check elastomer bearing in wheel carrier (4) for condition and damage.	If there is a problem, ↓ replace elastomer bearing in wheel carrier (4).
		Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version)	AR35.20-P-3404SCA
		Model 223 with engine 176, 256, 656 except code Z07 (B7 armoring on special protection version)	AR35.20-P-3404S
9	Install in the reverse order.
	Measure
10	Perform wheel alignment measurement.		AR40.20-P-0200S

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
