Remove/Install Rear Axle Elastomer Bearing Of Camber Strut On Wheel Carrier - AR35.20-P-3404S

Model 223 with engine 176, 256, 656

except code Z07 (B7 armoring on special protection version)

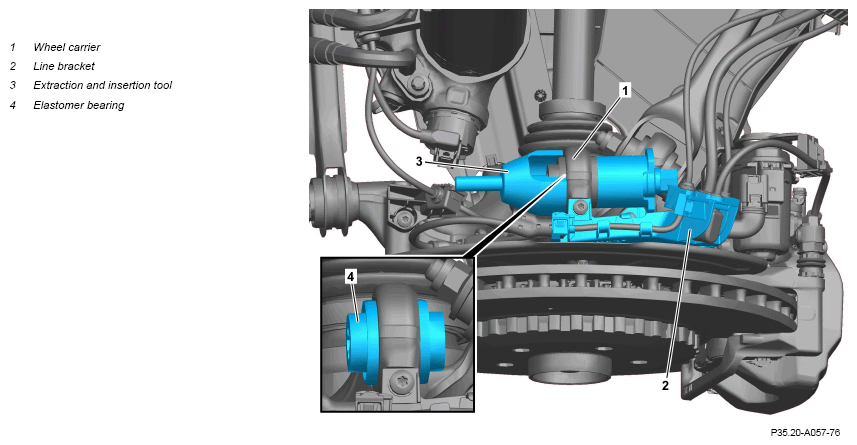

Removal, shown on right side of vehicle with removed camber strut

Courtesy of MERCEDES-BENZ USA

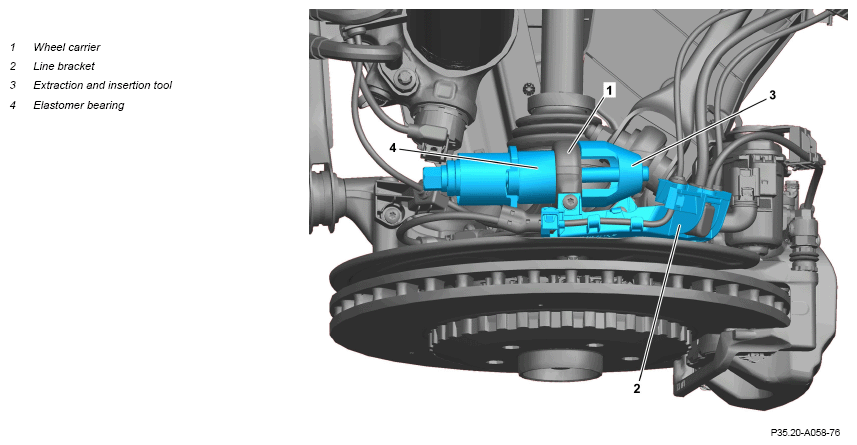

Installation shown on right side of vehicle with removed camber strut

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove camber strut from wheel carrier (1) and slide upwards.		AR35.20-P-0110S
2	Remove line bracket (2) and leave electric lines hanging down at one side.
3	Grease spindle of extraction and insertion tool (3) with rolling-element bearing grease.
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
4	Position extraction and insertion tool (3) onto wheel carrier (1) and elastomer bearing (4), as shown.	The spindle (205 589 01 43 02), washer (205 589 01 43 05) and washer (205 589 01 43 06) from the extraction and insertion tool are required. Extraction and insertion tool	Fig 2
		Extraction and insertion tool	Fig 1
5	Pull elastomer bearing (4) out of wheel carrier (1) and remove.
	Install
6	Clean bearing seat in wheel carrier (1).
7	Coat new elastomer bearing (4) with insertion agent.	Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
8	Grease spindle of extraction and insertion tool (3) again with rolling-element bearing grease.
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
9	Position extraction and insertion tool (3) with new elastomer bearing (4) onto wheel carrier (1) as shown.	The spindle (205 589 01 43 02), washer (205 589 01 43 05) and washer (205 589 01 43 06) from the extraction and insertion tool are required. Extraction and insertion tool	Fig 2
		Extraction and insertion tool	Fig 1
10	Pull new elastomer bearing (4) into wheel carrier (1).	Pull-in elastomer bearing (4) until protrusion on wheel carrier (1) is equal on both sides. The elastomer bearing (4) must be seated centrally in the wheel carrier (1).
11	Remove extraction and insertion tool (3).
12	Attach line bracket (2) with electric lines.
13	Mount camber strut onto wheel carrier (1).		AR35.20-P-0110S

Fig 1: Identifying Extraction And Insertion Tool (223 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (205 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
